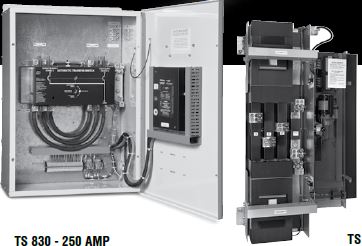

TS 83xA - 0100 Thomson Technology Transfer Switch (#2 - 4/0 TERM. RATING RANGE , 100 Withstand rating, TS830 Automatic Transfer Switch Series)

TS 83xA - 0100 Thomson Technology Transfer Switch (#2 - 4/0 TERM. RATING RANGE , 100 Withstand rating, TS830 Automatic Transfer Switch Series)

SKU:TS 83xA - 0100

Precio habitual $0.00 USD
Precio habitual Precio de oferta $0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Thomson Technology TS 83xA - 0100, TS830 Automatic Transfer Switch Series, #2 - 4/0 TERMINAL RATING RANGE , 100 Withstand rating fuse protected (kA), 7000 Mechanical endurance (Number of Operations)
Applications
Thomson Technology TS 830 series of Automatic Transfer Switches employ two mechanically interlocked enclosed contact power switching units and a microprocessor based controller to automatically transfer system load to an alternate supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source to within normal operating limits.
Features
LCD Display for monitoring single or 3 Phase Utility/Generator voltage, system frequency and timer countdown operation
Front Panel Programming using built-in faceplate mounted pushbuttons & LCD display with password security
Utility & Generator AC Voltage sensing (true RMS) 120-480V single or 3 phase
Generator AC frequency sensing
Utility under voltage control setpoint 70 - 95% (adjustable)
Generator under voltage control setpoint 70 - 95% (adjustable)
Generator under frequency control setpoint 70 - 90% (adjustable)
Engine warm-up timer 0-60 sec. (adjustable)
Utility return timer 0-30 min. (adjustable)
Engine start timer 0-60 sec. (adjustable)
Engine cooldown timer 0-30 min. (adjustable)
Neutral position delay timer 0-60 sec. (adjustable)
Pre/post transfer Load disconnect control to signal external building systems such as elevators during transfer operations
Programmable Generator Exercise Timer (EXT) with easy to use 4 event, 7-14-21-28 Day, On-load or Off-load Programmability
On Board Real-time clock c/w battery back-up & daylightsavings programming functionality
Data logging of key events including total transfers to generator, total utility power failures, load on utility hours, load on generator hours and utility or generator voltage/ frequency data at time of fault
Five user Programmable Output Contacts rated 10A, 120/240V resistive, Form C. Each output contact is individually user programmable to 10 different functions which includes: Load on Utility, Load on Gen, Load Disconnect Contact (LDC), Fail to Transfer (FTT), Utility Power Available (UPA), Generator Power Available (GPA), Utility Power Fail, Engine start, ATS Not in Auto, and ATS in Auto. The TSC 80e Controller is supplied pre-programmed from our factory with the following outputs enabled:
Load on Utility
Load on Generator
Load Disconnect Contact (LDC)
Fail to Transfer (FTT)
ATS Not in Auto

Specifications

Brand
Thomson Technology
Catalog Number
TS 83xA - 0100
Type
Transfer Switch
Series
TS830 Automatic Transfer Switch
DIMENSIONS Inches (mm) HEIGHT
31.1 (790)
DIMENSIONS Inches (mm) WIDTH
22.3 (566)
DIMENSIONS Inches (mm) DEPTH
14.0 (356)
TERMINAL RATING QTY PER PHASE
1
TERMINAL RATING RANGE
#2 - 4/0
Rated short circuit breaking capacity (Icu) kA @400V
50
Withstand rating fuse protected (kA)
100
Rated service short circuit breaking capacity (Ics) kA @400V
42
Mechanical endurance (Number of Operations)
7000
Warranty
1 Year
Notes
See Support Documents
