Gorman-Rupp Pumps

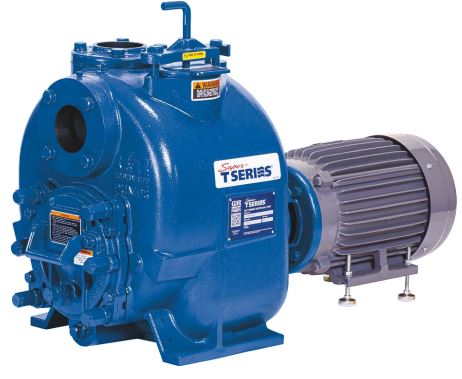

T3A60S-E5 1P Gorman Rupp 3" Self-Priming Centrifugal Pump SUPER T SERIES CI W/5 HP Electric Motor (Size 3” x 3”, 1 Phase)
T3A60S-E5 1P Gorman Rupp 3" Self-Priming Centrifugal Pump SUPER T SERIES CI W/5 HP Electric Motor (Size 3” x 3”, 1 Phase)
SKU:T3A60S-E5 1P
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
T3A60S-E5 1P Gorman Rupp 3" Self-Priming Centrifugal Pump SUPER T SERIES CI W/5 HP Electric Motor (Size 3” x 3”, 1 Phase)
Size 3” x 3”
PUMP SPECIFICATIONS:
Size: 3” x 3” (76 mm x 76 mm) NPT ‐ Female.
Casing: Gray Iron 30.
Maximum Operating Pressure 25 psi (172 kPa).* Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12.
Handles 2 1/2” (63,5 mm) Diameter Spherical Solids.
Flap Valve: Neoprene w/Nylon and Steel Reinforcing.
Removable Adjustable Cover Plate: Gray Iron 30; 35 lbs.
Externally Adjustable, Replaceable Wear Plate: Carbon Steel ASTM A36.
Seal Plate: Gray Iron 30.
Retainer Flange: Gray Iron 30.
Impeller Shaft: Alloy Steel 4150.
Shaft Sleeve: Alloy Steel 4130.
Lip Seals: Buna‐N.
Radial Bearing: Permanently Lubricated Single Row Ball.
Flanges: Gray Iron 30.
Gaskets: Buna‐N w/Compressed Synthetic Fibers, PTFE, Cork and Rubber.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Seal Cavity Oil Level Sight Gauge.
Steel Motor Support Feet.
MOTOR SPECIFICATIONS:
Type: TEFC.
Horsepower: 5.
RPM: 1150.
Voltage:
Single Phase ‐ 208‐230V/460V; 60 Hz; Frame 215TC
23.3‐22.0/11.0 Approx. Full Load Amps
Three Phase ‐ 208‐230V/460V; 60 Hz; Frame 215TC
15.1‐13.7/6.83 Approx. Full Load Amps
