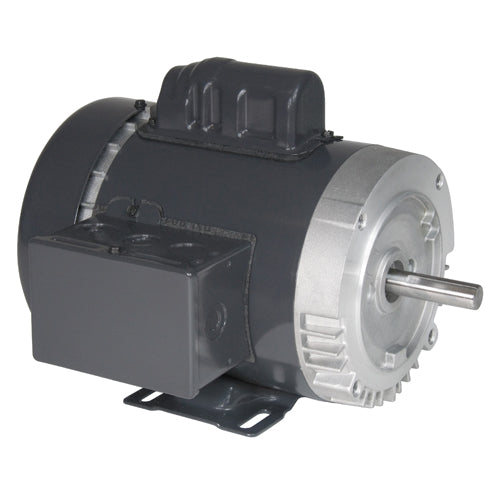

T34C2JC US Motor General Purpose Motor (3/4 HP, 1800 rpm, 115/208-230V)

T34C2JC US Motor General Purpose Motor (3/4 HP, 1800 rpm, 115/208-230V)

[COUNT] shoppers are looking at this right now

T34C2JC

$609.44 USD
$0.00 USD $609.44 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

US Motor Model # T34C2JC General Purpose Motor - 1 ph, 3/4 hp, 1800 rpm, 115/208-230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed / C-Face Flange Mount, 1725 rpm Base RPM

Model_Number
C063JDJ5293015B
PRODUCT NAME
.75 HP - TEFC - 1725
PHASETYPE
1_CAPACITOR START
MOTOR ENCLOSURE
TEFC
HORSEPOWER
.75
KILOWATTS
0.6
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115/208-230 V
VOLTS
115
VOLTS 2
208
VOLTS 3
230
FRME
56
SHAFT CODE
C
STATOR DIAMETER
6.3
STACK
2
MOUNTING
C-FACE/BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
REVERSIBLE
SERVICE FACTOR
1.15
STARTCAPMFD
509
SHIPPING WEIGHT
32
THERMAL PROTECTION
NONE
BREAKDOWN TORQUE
104.6
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
168.8
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
L
LOCKED ROTOR AMPS
56.23
NEMA NOMINAL EFFICIENCY
69
FULL LOAD AMPS PRIMARY
11.4/5.7-5.7
SERVICE FACTOR AMPS PRIMARY
11.8/5.7-5.9
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
