U.S. Motors

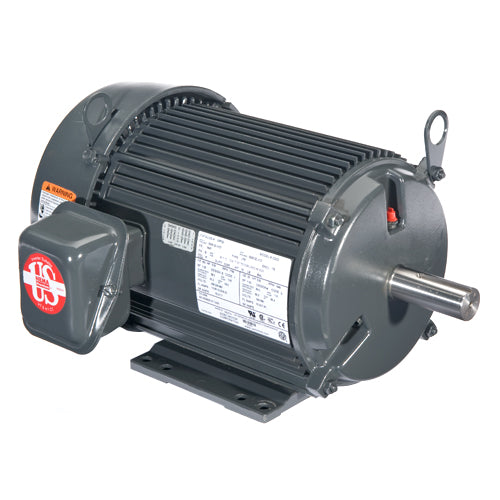

T32V2BFC US Motor Definite Purpose Motor (1.5 HP, TEFC, 1725 RPM, 208-230/460V)
T32V2BFC US Motor Definite Purpose Motor (1.5 HP, TEFC, 1725 RPM, 208-230/460V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:T32V2BFC
Precio habitual
$462.64 USD
Precio habitual
$0.00 USD
Precio de oferta
$462.64 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
T32V2BFC US Motor Definite Purpose Motor (1.5 HP, TEFC, 1725 RPM, 208-230/460V)
| Model_Number: | J063WFC0175015B |
| PRODUCT NAME: | 1.5 HP - TEFC - 1725 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 1.5 |
| KILOWATTS: | 1.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/460 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| VOLTS 3: | 460 |
| FRME : | 56 |
| SHAFT CODE: | C |
| STATOR DIAMETER: | 6.3 |
| STACK: | 3 |
| MOUNTING: | C-FACE/BASE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1.15 |
| SHIPPING WEIGHT: | 34 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE: | 357.3 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 239.6 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 35.12 |
| NEMA NOMINAL EFFICIENCY: | 76 |
| FULL LOAD AMPS PRIMARY: | 5.1-5.0/2.5 |
| SERVICE FACTOR AMPS PRIMARY: | 5.6-5.4/2.7 |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
