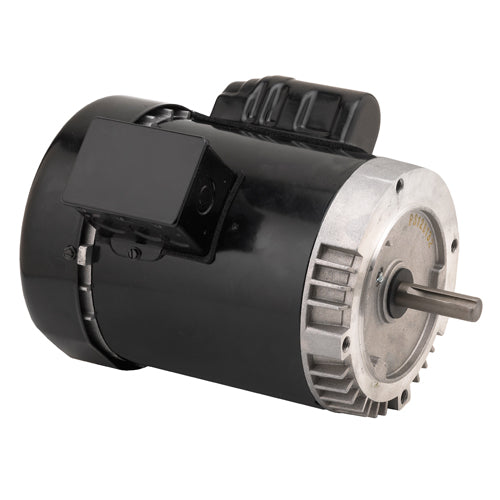

T2CA2JCR U.S. Motors General Purpose Motor (2 HP, 56C Frame, 1800 RPM)
T2CA2JCR U.S. Motors General Purpose Motor (2 HP, 56C Frame, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:T2CA2JCR
Precio habitual
$759.84 USD
Precio habitual
$0.00 USD
Precio de oferta
$759.84 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
US Motors Emerson T2CA2JCR, HP: 2, RPM: 1800, Volts: 115/208-230, Frame: 56C, "C" Dim. : 14.4, Speed: Single , Motor Mount : Footless, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz |
|
Tech Specs. |
|
|
Brand
|
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor
|
|
Model Number
|
T2CA2JCR
|
|
HP
|
2
|
|
RPM
|
1800
|
|
Volts
|
115/208-230
|
|
SF
|
1
|
|
Frame
|
56C
|
|
Full Load Amps
|
18.9/10.3-9.4
|
|
"C" Dim.
|
14.4
|
|
Apx. Wt. (lb)
|
31
|
|
Speed
|
Single
|
|
Phase
|
Single
|
|
Motor Mount
|
Footless
|
|
Enclosure
|
TEFC
|
|
Type
|
General Purpose Single Phase C-Face Motor
|
|
Rotation
|
Reversible
|
|
Notes
|
Capacitor Start
|
|
|
|
|
|
|
|
|
|
