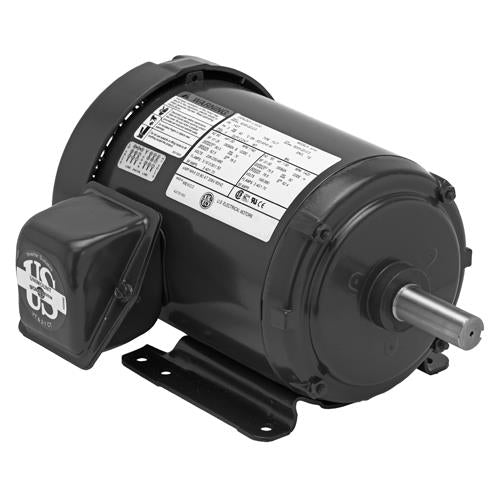

T14S2A U.S. Motors General Purpose Motor (1/4 HP, 56 Frame, Three Phase, 1800 RPM)

T14S2A U.S. Motors General Purpose Motor (1/4 HP, 56 Frame, Three Phase, 1800 RPM)

T14S2A

$197.72 USD
$197.72 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson T14S2A, HP: 1/4, RPM: 1800, Volts: 208-230/460, "C" Dim: 10.9, Frame: 56, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps

Applications
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
Features
Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-140), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up, Conversion Kits: Drip Cover & Brakes (56-210 Frame), See Pages 263-266

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number
T14S2A
HP
1/4
RPM
1800
Volts
208-230/460
"C" Dim
10.9
Frame
56
Full Load Amps
1.1-1.1/.5
Full Load Efficiency
-
Apx. Wt. (lb)
17
SF
1.15
Phase
Three
Motor Mount
Foot Mounted
Enclosure
TEFC
Type
General Purpose Industrial Motor
