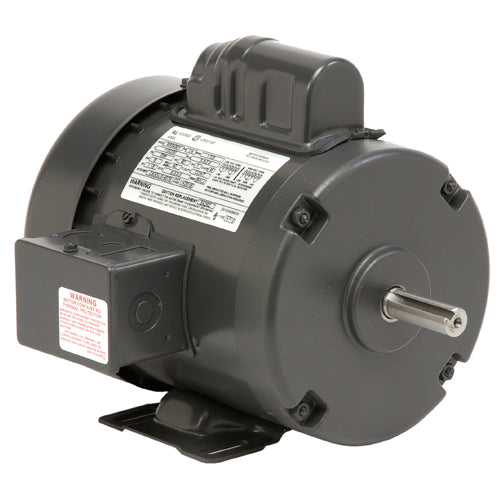

T14C2P4ZS US Motor General Purpose Single Phase Motor (.25 HP, TEFC, 1725 RPM, 115/230V)
T14C2P4ZS US Motor General Purpose Single Phase Motor (.25 HP, TEFC, 1725 RPM, 115/230V)
SKU:T14C2P4ZS
Precio habitual
$305.31 USD
Precio habitual
Precio de oferta
$305.31 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
T14C2P4ZS US Motor General Purpose Single Phase Motor (.25 HP, TEFC, 1725 RPM, 115/230V)
| Model_Number: | C055JWV2200012B |
| Cat # | T14C2P4ZS |
| PRODUCT NAME: | .25 HP - TEFC - 1725 |
| PHASETYPE: | 1_CAPACITOR START |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | .25 |
| KILOWATTS: | 0.2 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 V |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRME : | 48 |
| SHAFT CODE: | YZ |
| STATOR DIAMETER: | 5.5 |
| STACK: | 2 |
| MOUNTING: | CRADLE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CW/CCW |
| SERVICE FACTOR: | 1.15 |
| STARTCAPMFD: | 257 |
| SHIPPING WEIGHT: | 18 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE: | 50.38 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 73.54 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | P |
| LOCKED ROTOR AMPS: | 30.55 |
| FULL LOAD AMPS PRIMARY: | 5.3/2.7 |
| SERVICE FACTOR AMPS PRIMARY: | 5.6/2.8 |
