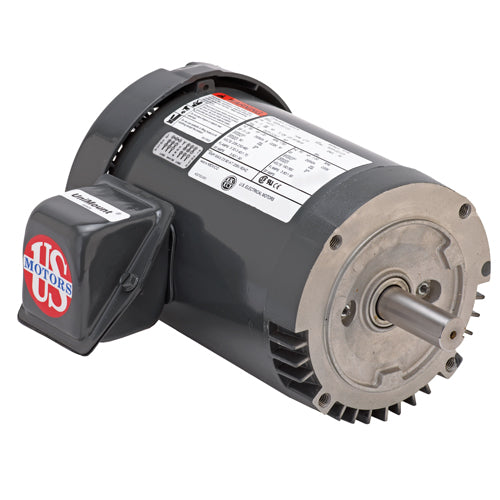

T13S2GCR U.S. Motors General Purpose Steel Edge Motor (1/3 HP, 1800 RPM, 575V, Three Phase)
T13S2GCR U.S. Motors General Purpose Steel Edge Motor (1/3 HP, 1800 RPM, 575V, Three Phase)
[COUNT] shoppers are looking at this right now
SKU:T13S2GCR
Precio habitual
$241.32 USD
Precio habitual
$0.00 USD
Precio de oferta
$241.32 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
U.S. Motors T13S2GCR, STEEL EDGE , 1/3 HP, 1800 RPM, 575 , Three Phase, 56C Frame,
| Applications | |
| For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment. | |
| Features | |
| Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power | |
| Shaft Slinger On Pulley End | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
T13S2GCR |
Type |
General Purpose Motor |
Series |
STEEL EDGE |
HP |
1/3 |
RPM |
1800 |
Voltage |
575 |
Phase |
Three |
Frame |
56C |
SF |
1 .15 |
"C" Dim. (inches) |
11 .4 |
Ship Wt. (lbs) |
26 |
NEMA Nom. Eff. |
- |
Full Load Amps |
0 .59 |
Enclosure |
TEFC |
Mounting |
C |
Hertz |
60 |
Material |
Rolled Steel |
Insulation |
Class F |
Base |
Footless |
Notes |
See support documents |
Support Documents (pdf) |
