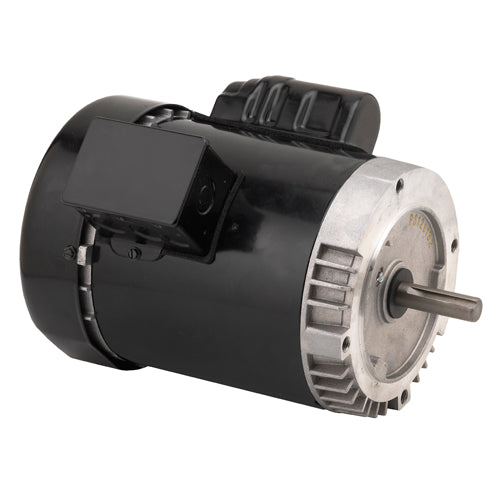

T13C2P42ZCR U.S. Motors General Purpose Motor (1/3 HP, 42CZ Frame, 1800 RPM)
T13C2P42ZCR U.S. Motors General Purpose Motor (1/3 HP, 42CZ Frame, 1800 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:T13C2P42ZCR
Precio habitual
$410.45 USD
Precio habitual
$0.00 USD
Precio de oferta
$410.45 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson T13C2P42ZCR, HP: 1/3, RPM: 1800, Volts: 115/230, Frame: 42CZ, "C" Dim. : 11.6, Speed: Single , Motor Mount : Footless, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz |
Tech Specs. | |
Brand |
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor |
Model Number |
T13C2P42ZCR |
HP |
1/3 |
RPM |
1800 |
Volts |
115/230 |
SF |
1 |
Frame |
42CZ |
Full Load Amps |
6.2/3.1 |
"C" Dim. |
11.6 |
Apx. Wt. (lb) |
21 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footless |
Enclosure |
TEFC |
Type |
General Purpose Single Phase C-Face Motor |
Rotation |
Reversible |
Notes |
Capacitor Start |
