U.S. Motors

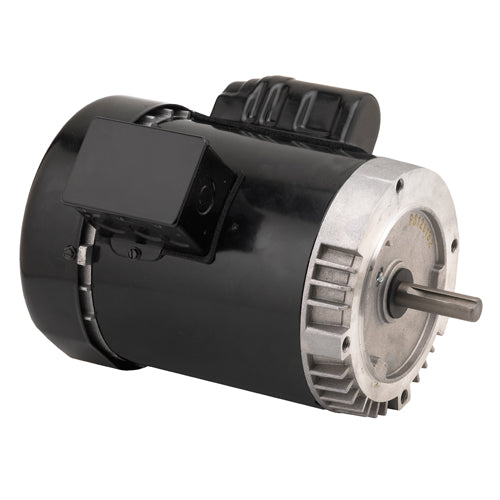

T12CM2JCR U.S. Motors General Purpose Motor (1/2 HP, 56C Frame, 1800 RPM)

T12CM2JCR U.S. Motors General Purpose Motor (1/2 HP, 56C Frame, 1800 RPM)

T12CM2JCR

$372.49 USD
$372.49 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson T12CM2JCR, HP: 1/2, RPM: 1800, Volts: 115/208-230, Frame: 56C, "C" Dim. : 11.4, Speed: Single , Motor Mount : Footless, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps
Applications
For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment.
Features
Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz

Tech Specs.

Brand
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor
Model Number
T12CM2JCR
HP
1/2
RPM
1800
Volts
115/208-230
SF
1.15
Frame
56C
Full Load Amps
9.0/4.3-4.5
"C" Dim.
11.4
Apx. Wt. (lb)
20
Speed
Single
Phase
Single
Motor Mount
Footless
Enclosure
TEFC
Type
General Purpose Single Phase C-Face Motor
Rotation
Reversible
Notes
Capacitor Start
