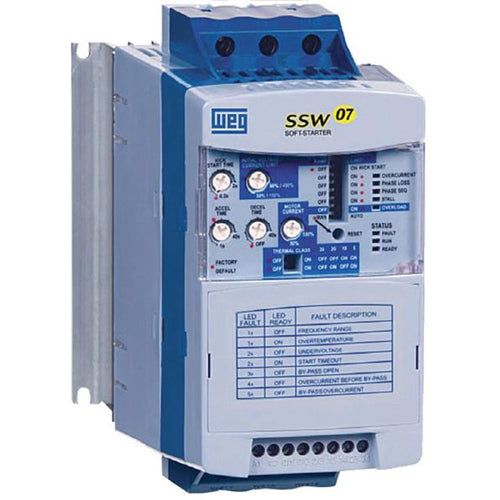

SSW070024T5SZ WEG Soft Starter (24 Amps, Three Phase, 220-575 V)
SSW070024T5SZ WEG Soft Starter (24 Amps, Three Phase, 220-575 V)
SKU:SSW070024T5SZ
Precio habitual
$992.80 USD
Precio habitual
Precio de oferta
$992.80 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WEG SSW070024T5SZ, SSW07 Soft Starter Type, 7.5 HP, 24 Amps, Three Phase, 220-575 V, 1 Frame Size, Protected Chassis Enclosure , WEG Soft Starter
| Applications | |
| Soft Starters are static starting devices, designed for the acceleration, deceleration and protection of the three phase, electric induction motor through the control of the voltage applied to the motor. The SSW07, with DSP control (Digital Signal Processor), was designed to provide great performance on motor starts and stops with an excellent cost-benefit relation. Easy to set up, it simplifies start-up activities and daily operation. The SSW07 is compact, optimizing space in electric panels. The SSW07 incorporates all electric motor protection classification and adapts to customer needs through its easy-to-install optional accessories. Thus, a keypad, a communication interface or a motor PTC input can be added to the product. | |
| Features | |
| Significant reduction in mechanical stresses of the coupling and transmission devices (gearboxes, pulleys, gears, conveyors, etc.) during start. | |
| Increases motor and equipment lifetime due to the elimination of mechanical shock | |
| Easy operation, setup, maintenance & installation | |
| Operates in environments up to 55C (without derate for all models) | |
| Integral, electronic motor protection | |
| Built-in electronic thermal relay | |
| Avoids the Water Hammer in pumps | |
| Limitation of voltage drop during start | |
| Universal voltage (220 to 575 Vac) | |
| Switched type power supply with EMC filter for the control electronics (110 to 240 Vac) | |
| Thermal monitoring of both motor and soft starter | |
Tech Specs | |
Brand |
WEG |
Model Number |
SSW070024T5SZ |
Type |
SSW07 Soft Starter |
HP @ 220/230V |
7.5 |
HP @ 440/460V |
15 |
HP @ 575V |
20 |
Soft Starter AMPS |
24 |
Power Supply |
220-575 V |
Phase |
Three Phase |
Frame Size |
1 |
Dimensions (in.) H x W x D |
6.38 x 3.74 x 6.18 |
Enclosure |
Protected Chassis Enclosure |
Weight (lbs.) |
2.9 |
Notes |
See Drive Literature |
Support Documents (pdf) | ||||
| SSW07 Drive Literature | ||||
