Sta-Rite Pumps

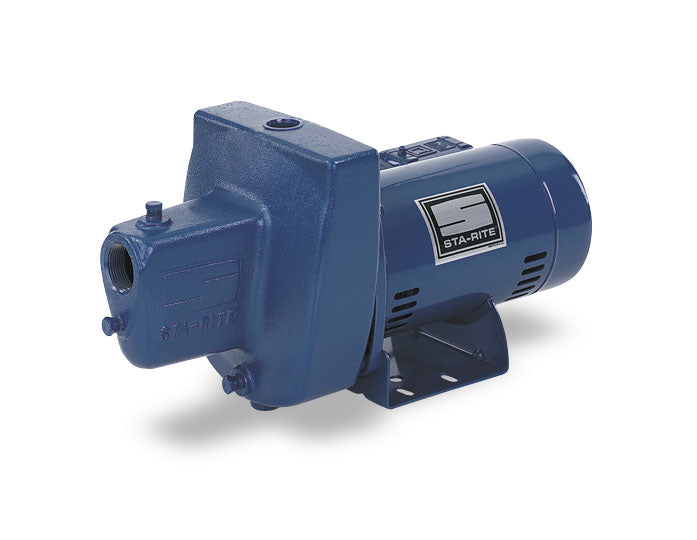

SNE-L STA-RITE Shallow Well Jet Pump (1 HP, 115/230V, 1 Phase, 25' Max. Lift, 18.7 GPM @ 10 FT/40 PSI)

SNE-L STA-RITE Shallow Well Jet Pump (1 HP, 115/230V, 1 Phase, 25' Max. Lift, 18.7 GPM @ 10 FT/40 PSI)

SKU:SNE-L

Precio habitual $755.62 USD
Precio habitual $1,551.00 USD Precio de oferta $755.62 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

SNE, 1 HP, 115/230 Volts, 1 Phase, 30-50 PSI Pressure Switch Setting, 1-1/4" NPT Suction Size, 1" NPT Discharge Size, 25' Max. Lift, 18.7 GPM @ 10 FT/40 PSI,
Applications
Water Systems and Irrigation for Homes, Farms and Cottages
Features
The ProJet HN models provide excellent performance with good pressure for wells to 25' deep
Close-grained cast iron body, specially treated for corrosion resistance
Drain port provided for easy winterizing
Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser
Stainless steel shaft for maximum corrosion resistance
High strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion
Self-priming after the priming chamber has been filled with water

Specifications

Brand
STA-RITE
Model Number
SNE-L
Type
Self-Priming Shallow Well Jet Pump
STA-RITE Pump Series
ProJet SN Series - Cast Iron
HP
1
Volts
115/230
Phase
1
Pressure Switch Setting
30-50 PSI
Suction Size
1-1/4" NPT
Discharge Size
1" NPT
Max. Lift
25'
Max. Temperature
140F
Max. Inlet Pressure
50 PSI
Shut-off Pressure
67 PSI
GPM @ 10 FT/40 PSI
18.7
Max. GPM
21.4
Pump Body
Close-Grained Cast Iron
Shaft
416 Stainless Steel
Impeller
Noryl
Nozzle & Venturi
Lexan
Diffuser
Reinforced Polypropylene
Pressure Switch
Included
Warranty
1 Year
Weight lbs.
55
Notes & Pump Curve
See Support Documents
Pump Manual
See Support Documents




































Support Documents (pdf)

Notes & Pump Curve
Installation & Parts Manual
