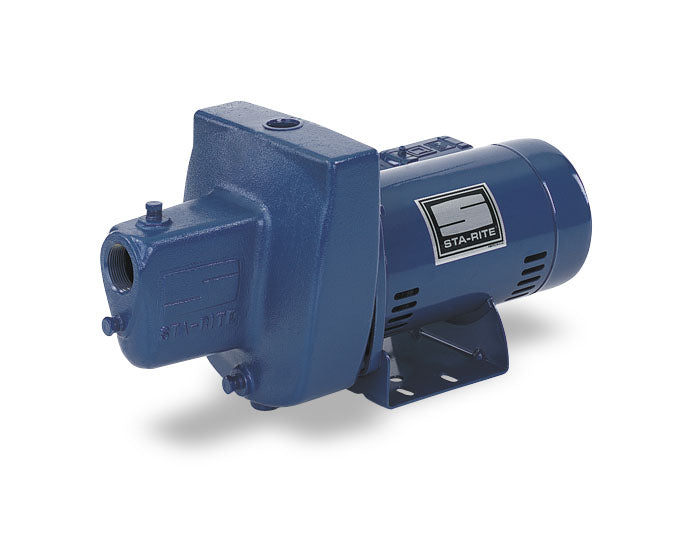

SNC-HF25L STA-RITE Shallow Well Jet Pump (1/2 HP, 115/230V, 1 Phase, 25' Max. Lift, 6.3 GPM @ 10 FT/40 PSI)

SNC-HF25L, 1/2 HP, 115/230 Volts, 1 Phase, 20-40 PSI Pressure Switch Setting, 1-1/4" NPT Suction Size, 1" NPT Discharge Size, 25' Max. Lift, 6.3 GPM @ 10 FT/40 PSI,

Applications
Water Systems and Irrigation for Homes, Farms and Cottages
Features
The ProJet HN models provide excellent performance with good pressure for wells to 25' deep
Close-grained cast iron body, specially treated for corrosion resistance
Drain port provided for easy winterizing
Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser
Stainless steel shaft for maximum corrosion resistance
High strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion
Self-priming after the priming chamber has been filled with water

Specifications
Brand	STA-RITE
Model Number	SNC-HF25L
Type	High Flow, Self-Priming Shallow Well Jet Pump
STA-RITE Pump Series	ProJet SN Series - Cast Iron
HP	1/2
Volts	115/230
Phase	1
Pressure Switch Setting	20-40 PSI
Suction Size	1-1/4" NPT
Discharge Size	1" NPT
Max. Lift	25'
Max. Temperature	140F
Max. Inlet Pressure	50 PSI
Shut-off Pressure	56 PSI
GPM @ 10 FT/40 PSI	6.3
Max. GPM	13.7
Pump Body	Close-Grained Cast Iron
Shaft	416 Stainless Steel
Impeller	Noryl
Nozzle & Venturi	Lexan
Diffuser	Reinforced Polypropylene
Pressure Switch	Included
Warranty	1 Year
Weight lbs.	46
Notes & Pump Curve	See Support Documents
Pump Manual	See Support Documents

Support Documents (pdf)
Notes & Pump Curve
Installation & Parts Manual
