SB24VRS1021 Pentair Myers 24"x24" Pre-Plumbed Grinder Package (1 HP, Single Phase, 230 Volt, 52 Max Capacity, 60' Max Head, 2" NPT Discharge, 20' Cord, PRE-T Switch)

SB24VRS1021 Pentair Myers 24"x24" Pre-Plumbed Grinder Package (1 HP, Single Phase, 230 Volt, 52 Max Capacity, 60' Max Head, 2" NPT Discharge, 20' Cord, PRE-T Switch)

[COUNT] shoppers are looking at this right now

SB24VRS1021

$2,882.56 USD
$5,621.00 USD $2,882.56 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

VIEW PRICE IN CART

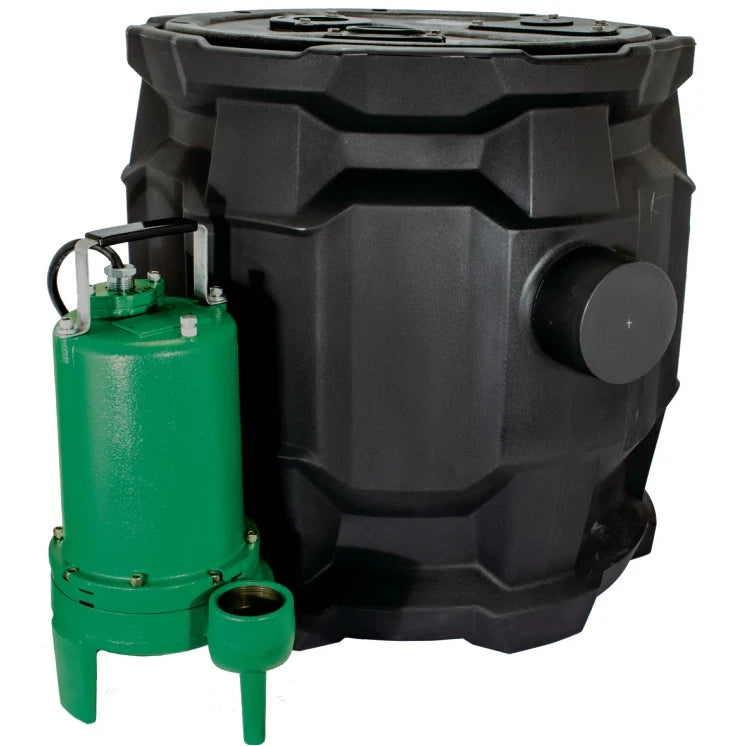

SB24VRS1021 Pentair Myers 24"x24" Pre-Plumbed Grinder Package (1 HP, Single Phase, 230V, 20' Cord)

The Myers SB24VRS1021 24"x24" Pre-Plumbed Grinder Package is the perfect option to collect sewage and effluent - easily installed in your basement floor. Pentair tests all products before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Myers, a trusted name in the industry.

The Myers 24” x 24” Sewage Basin is designed to be installed in a basement floor to collect sewage or effluent water from toilet, washer, dishwasher or a sink so that it can be pumped away with a sump pump or sewage pump.

Features:
  • Pre-Assembled From Factory: For quick and easy installation.
  • Cast Iron Sewage and Grinder Pumps: For high performance.
  • Robust Polyethylene Structure: For superior durability.
  • Specially Designed Bottom Grooves: For easy leveling in rough soil.
  • Molded Torque Stops: Keep pump in place.
  • 38.5 Gallon Capacity: For longer pump cycles prolonging the pump life.
  • 5 Additional Flats: For adding or changing inlet pipe location.

Specifications:

  • Motor HP: 1 HP
  • Maximum Pump Capacity: 52 GPM (185 LPM )
  • Maximum Shut-Off Head: 60’ (18.6 m)
  • Discharge: 2”
  • Volts: 115, 230
  • Full Load Amps: 13.0 (115V), 7.0 (230V)
  • Phase: Single - Cord Length: 20’ (6.1 m)
  • Switch Options: PRE-T
  • Pump Impeller Material: Thermoplastic
  • Pump Housing Material: Cast iron
  • Pump Volute Material: Cast iron
  • Basin Material: Polyethylene
  • Basin Dimensions (W x H): 24” x 24” (609 mm x 609 mm)
  • Basin Capacity: 38.5 Gallons (145.7 Liters)
  • Lid Material: Polyethylene
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
