Sta-Rite Pumps

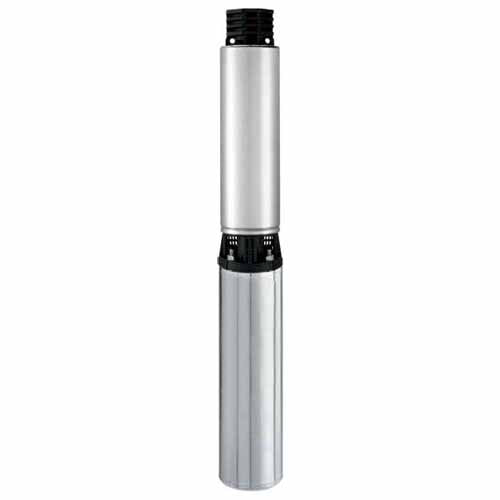

S7P4JP05231-02 Sta-Rite 4" Submersible Pump and Motor (1/2 HP, 11-02 Stages, 1 PH, 3 Wire, 230 Volt, 7 GPM)
S7P4JP05231-02 Sta-Rite 4" Submersible Pump and Motor (1/2 HP, 11-02 Stages, 1 PH, 3 Wire, 230 Volt, 7 GPM)
SKU:S7P4JP05231-02
Precio habitual
$1,030.00 USD
Precio habitual
$3,090.00 USD
Precio de oferta
$1,030.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Sta-Rite S7P4JP05231, 4" SUBMERSIBLE PUMP, JP Series Series, 1/2 HP, 11 Stages, 1 PH, 3 Wire, 230 Volt, 7 GPM
| Applications | |
| Applications: Water Supply: for residential, industrial, commercial, multiple housing and farm use. | |
| Features | |
| Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry. | |
| Discharge Bearing: Self-lubricating Nylatron bearing resists wear from sand. | |
| Shaft: Positive drive from 7/16" hexagonal heavy-duty 300 grade stainless steel. | |
| Coupling: Stainless steel press fit to pump shaft, which couples to all standard NEMA motors. | |
| Shell: 300-grade, heavy-walled corrosion-resistant stainless steel. | |
| Hardware: All screws, washers and nuts are corrosion-resistant 300 grade stainless steel. | |
| Pentek XE Series Motor: Our powerful, encapsulated submersible 2 and 3 wire motors drive all of our Sta-Rite pumps. These powerful motors have been proven over the years with over a million motors installed across the world! | |
Specifications | |
Brand |
Sta-Rite |
Catalog Number |
S7P4JP05231 |
Type |
4" SUBMERSIBLE PUMPS |
Series |
JP Series |
HP |
1/2 |
Stages |
11 |
PH |
1 |
Wire |
3 |
Volt |
230 |
Length (in.) |
26 |
GPM |
7 |
Pump End |
L7P4CJL |
Motor End |
P43B0005A2-C |
Pump Construction |
corrosion-resistant stainless steel |
Contents |
Pump and motor |
Weight lbs. |
27 |
Warranty |
1 Year Warranty |
Support Documents (pdf) |
