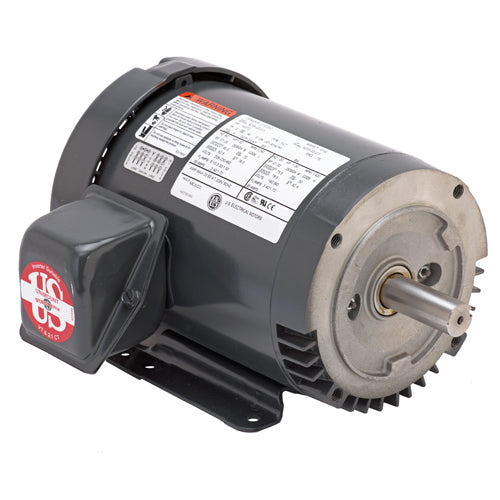

S7P2AC U.S. Motors General Purpose Motor (7 1/2 HP, 213TC Frame, Three Phase, 1800 RPM)

US Motors Emerson S7P2AC, HP: 7 1/2, RPM: 1800, Volts: 208-230/460, "C" Dim: 19.4, Frame: 213TC, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps

Applications

For use on pumps, fans, compressors, material handling and other general purpose applications in damp, dusty or dirty environments.

Features

Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-210), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up

Tech Specs.
Brand	U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number	S7P2AC
HP	7 1/2
RPM	1800
Volts	208-230/460
"C" Dim	19.4
Frame	213TC
Full Load Amps	20.0-18.1/9.1
Full Load Efficiency	91.7
Apx. Wt. (lb)	105
SF	1.15
Phase	Three
Motor Mount	Foot Mounted
Enclosure	TEFC
Type	General Purpose Industrial Motor
