Berkeley Pumps

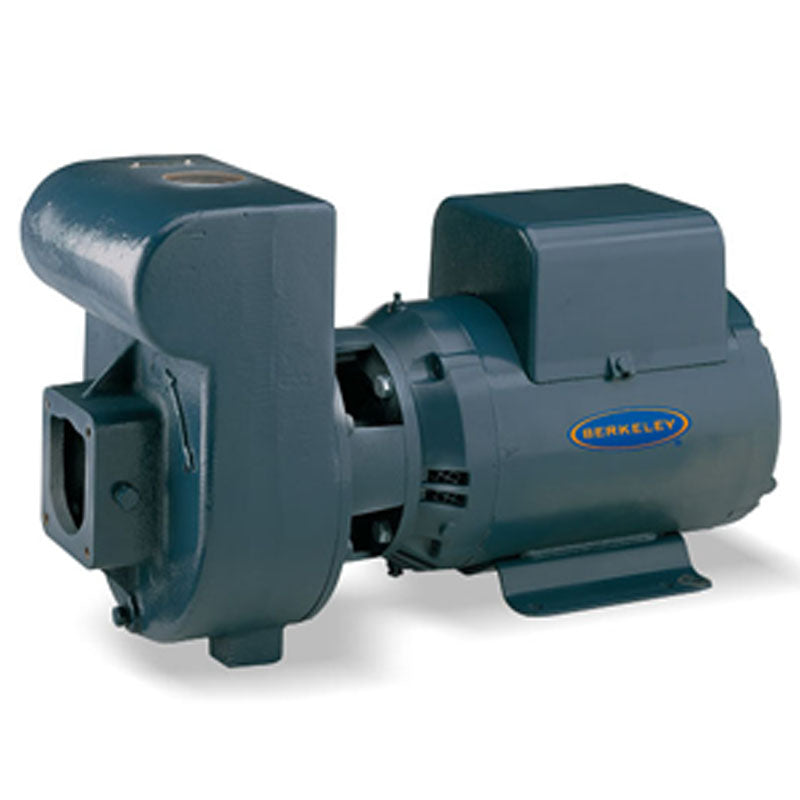

S40102 Berkeley Self-Priming Centrifugal Pumps (5 HP, 1 Phase, 230 Voltage, 2-1/2" Discharge, Medium Head, LTM/LTH Series)

S40102 Berkeley Self-Priming Centrifugal Pumps (5 HP, 1 Phase, 230 Voltage, 2-1/2" Discharge, Medium Head, LTM/LTH Series)

SKU:S40102

Precio habitual $2,509.46 USD
Precio habitual Precio de oferta $2,509.46 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley S40102, Self-Priming, Cast Iron Centrifugal Pumps Type, LTM/LTH Series, 5 HP, 1 Phase, 230 Voltage, 2-1/2" Discharge, Medium Head
Applications
Lawn Sprinklingoperate from 1 to 30 or more heads. Can be safely operated by timer or other automatic device. Contractorsfor dewatering excavation, jetting, water transfer and supply operations. Agricultureseed bed and plot irrigation, stock watering, fire protection. Industrialsump drainage, fire protection, marine pumping, liquid transfer and supply operations.
Features
Heavy-Duty Motors - on Both High and Medium Head Models
Drain Port - Provided For Easy Servicing
Medium Head Models - Deliver Up To 115' of Head With Capacities to 159 GPM
High Head Models - Deliver Up To 138' of Head With Capacities to 162 GPM
Easy Serviceability - Normal Wearing Parts Easily Replaced Without Disturbing Piping or Mounting

Specifications

Brand
Berkeley
Catalog Number
S40102
Type
Self-Priming, Cast Iron Centrifugal Pumps
Series
LTM/LTH
HP
5
Phase
1
Voltage
230
Suction
3"
Discharge
2-1/2"
Max Load Amps
22
Description
Medium Head
Body and Base
Close-grained cast iron
Impeller
Bronze
Diffuser
Cast iron
Shaft
Carbon steel inside removable shaft sleeve of stainless steel.
Max Inlet Pressure
20 PSI
Max Discharge Pressure
100 PSI
Capacities
159 GPM
