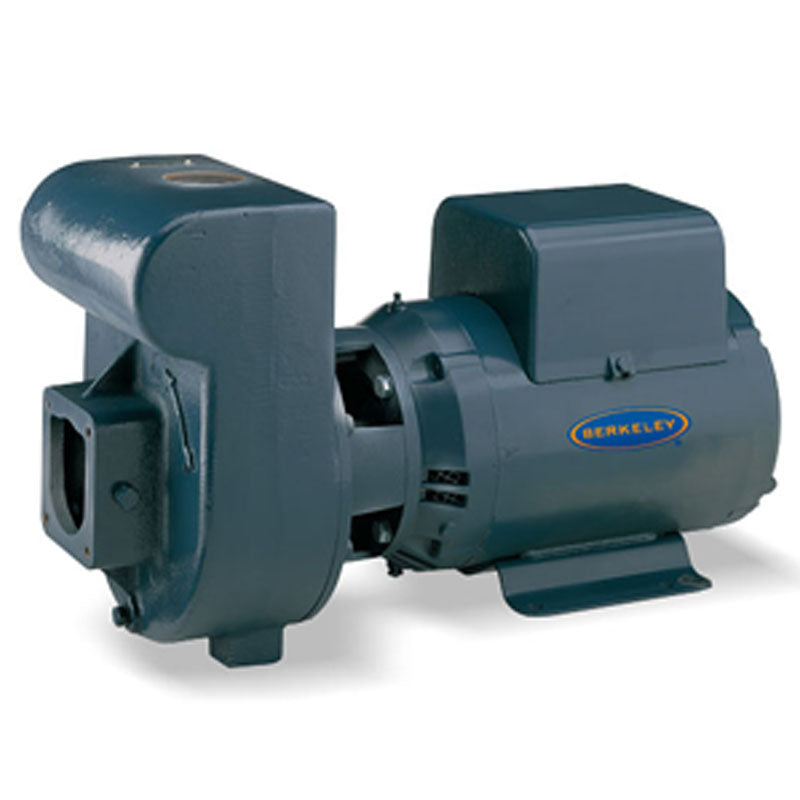

S40099 Berkeley Self-Priming Centrifugal Pumps (3 HP, 3 Phase, 208-230/460 Voltage, 2" Discharge, Medium Head, LTM/LTH Series)
S40099 Berkeley Self-Priming Centrifugal Pumps (3 HP, 3 Phase, 208-230/460 Voltage, 2" Discharge, Medium Head, LTM/LTH Series)
SKU:S40099
Precio habitual
$2,510.81 USD
Precio habitual
$4,896.00 USD
Precio de oferta
$2,510.81 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Berkeley S40099, Self-Priming, Cast Iron Centrifugal Pumps Type, LTM/LTH Series, 3 HP, 3 Phase, 208-230/460 Voltage, 2" Discharge, Medium Head
| Applications | |
| Lawn Sprinklingoperate from 1 to 30 or more heads. Can be safely operated by timer or other automatic device. Contractorsfor dewatering excavation, jetting, water transfer and supply operations. Agricultureseed bed and plot irrigation, stock watering, fire protection. Industrialsump drainage, fire protection, marine pumping, liquid transfer and supply operations. | |
| Features | |
| Heavy-Duty Motors - on Both High and Medium Head Models | |
| Drain Port - Provided For Easy Servicing | |
| Medium Head Models - Deliver Up To 115' of Head With Capacities to 159 GPM | |
| High Head Models - Deliver Up To 138' of Head With Capacities to 162 GPM | |
| Easy Serviceability - Normal Wearing Parts Easily Replaced Without Disturbing Piping or Mounting | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
S40099 |
Type |
Self-Priming, Cast Iron Centrifugal Pumps |
Series |
LTM/LTH |
HP |
3 |
Phase |
3 |
Voltage |
208-230/460 |
Suction |
2-1/2" |
Discharge |
2" |
Max Load Amps |
8.6/4.3 |
Description |
Medium Head |
Body and Base |
Close-grained cast iron |
Impeller |
Bronze |
Diffuser |
Cast iron |
Shaft |
Carbon steel inside removable shaft sleeve of stainless steel. |
Included |
Suction flange with flapper check included |
Max Inlet Pressure |
20 PSI |
Max Discharge Pressure |
100 PSI |
Capacities |
159 GPM |
Support Documents (pdf) |
