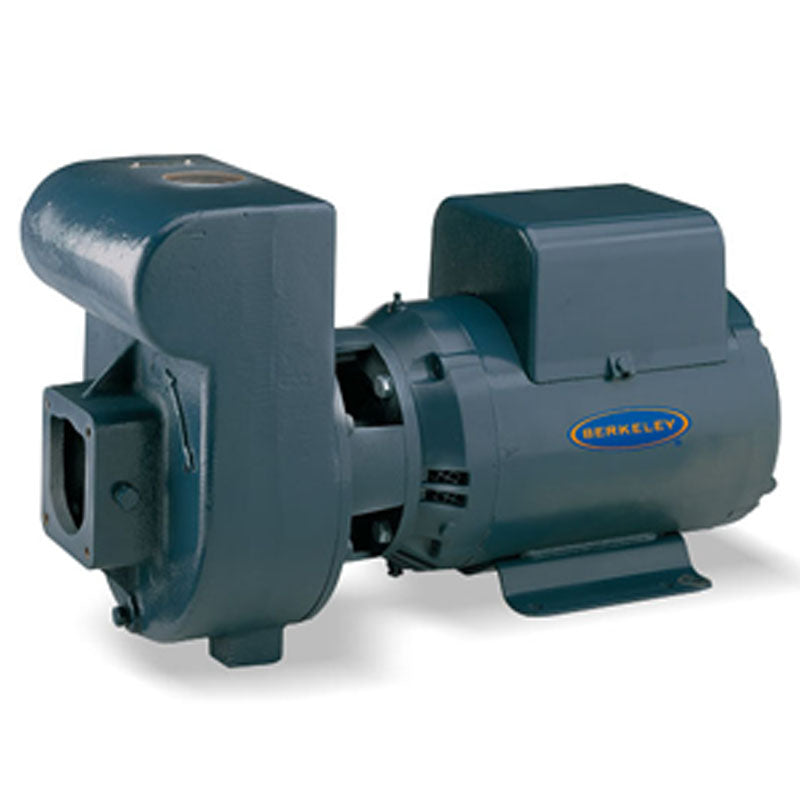

S40094 Berkeley Self-Priming Centrifugal Pumps (3 HP, 1 Phase, 230 Voltage, 1-1/2" Discharge, High Head, LTM/LTH Series)
S40094 Berkeley Self-Priming Centrifugal Pumps (3 HP, 1 Phase, 230 Voltage, 1-1/2" Discharge, High Head, LTM/LTH Series)
SKU:S40094
Precio habitual
$2,455.38 USD
Precio habitual
$5,040.00 USD
Precio de oferta
$2,455.38 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Berkeley S40094, Self-Priming, Cast Iron Centrifugal Pumps Type, LTM/LTH Series, 3 HP, 1 Phase, 230 Voltage, 1-1/2" Discharge, High Head
Applications | |
Lawn Sprinklingoperate from 1 to 30 or more heads. Can be safely operated by timer or other automatic device. Contractorsfor dewatering excavation, jetting, water transfer and supply operations. Agricultureseed bed and plot irrigation, stock watering, fire protection. Industrialsump drainage, fire protection, marine pumping, liquid transfer and supply operations. | |
Features | |
Heavy-Duty Motors - on Both High and Medium Head Models | |
Drain Port - Provided For Easy Servicing | |
Medium Head Models - Deliver Up To 115' of Head With Capacities to 159 GPM | |
High Head Models - Deliver Up To 138' of Head With Capacities to 162 GPM | |
Easy Serviceability - Normal Wearing Parts Easily Replaced Without Disturbing Piping or Mounting |
Specifications | |
Brand |
Berkeley |
Catalog Number |
S40094 |
Type |
Self-Priming, Cast Iron Centrifugal Pumps |
Series |
LTM/LTH |
HP |
3 |
Phase |
1 |
Voltage |
230 |
Suction |
2" |
Discharge |
1-1/2" |
Max Load Amps |
13.4 |
Description |
High Head |
Body and Base |
Close-grained cast iron |
Impeller |
Bronze |
Diffuser |
Cast iron |
Shaft |
Carbon steel inside removable shaft sleeve of stainless steel. |
Max Inlet Pressure |
20 PSI |
Max Discharge Pressure |
100 PSI |
Capacities |
162 GPM |
Support Documents (pdf) |
