Berkeley Pumps

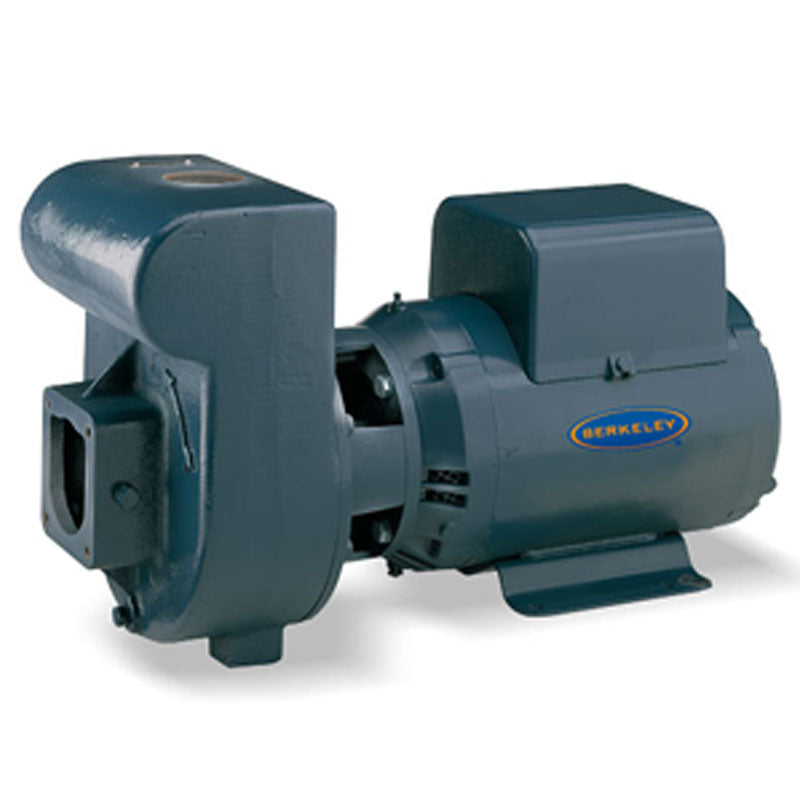

S40093 Berkeley Self-Priming Centrifugal Pumps (3 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Discharge, High Head, LTM/LTH Series)

S40093 Berkeley Self-Priming Centrifugal Pumps (3 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Discharge, High Head, LTM/LTH Series)

[COUNT] shoppers are looking at this right now

S40093

$2,582.48 USD
$5,097.00 USD $2,582.48 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

View price in cart

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Berkeley S40093, Self-Priming, Cast Iron Centrifugal Pumps Type, LTM/LTH Series, 3 HP, 3 Phase, 208-230/460 Voltage, 1-1/2" Discharge, High Head
Applications
Lawn Sprinklingoperate from 1 to 30 or more heads. Can be safely operated by timer or other automatic device. Contractorsfor dewatering excavation, jetting, water transfer and supply operations. Agricultureseed bed and plot irrigation, stock watering, fire protection. Industrialsump drainage, fire protection, marine pumping, liquid transfer and supply operations.
Features
Heavy-Duty Motors - on Both High and Medium Head Models
Drain Port - Provided For Easy Servicing
Medium Head Models - Deliver Up To 115' of Head With Capacities to 159 GPM
High Head Models - Deliver Up To 138' of Head With Capacities to 162 GPM
Easy Serviceability - Normal Wearing Parts Easily Replaced Without Disturbing Piping or Mounting

Specifications

Brand
Berkeley
Catalog Number
S40093
Type
Self-Priming, Cast Iron Centrifugal Pumps
Series
LTM/LTH
HP
3
Phase
3
Voltage
208-230/460
Suction
2"
Discharge
1-1/2"
Max Load Amps
8.6/4.3
Description
High Head
Body and Base
Close-grained cast iron
Impeller
Bronze
Diffuser
Cast iron
Shaft
Carbon steel inside removable shaft sleeve of stainless steel.
Max Inlet Pressure
20 PSI
Max Discharge Pressure
100 PSI
Capacities
162 GPM

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
