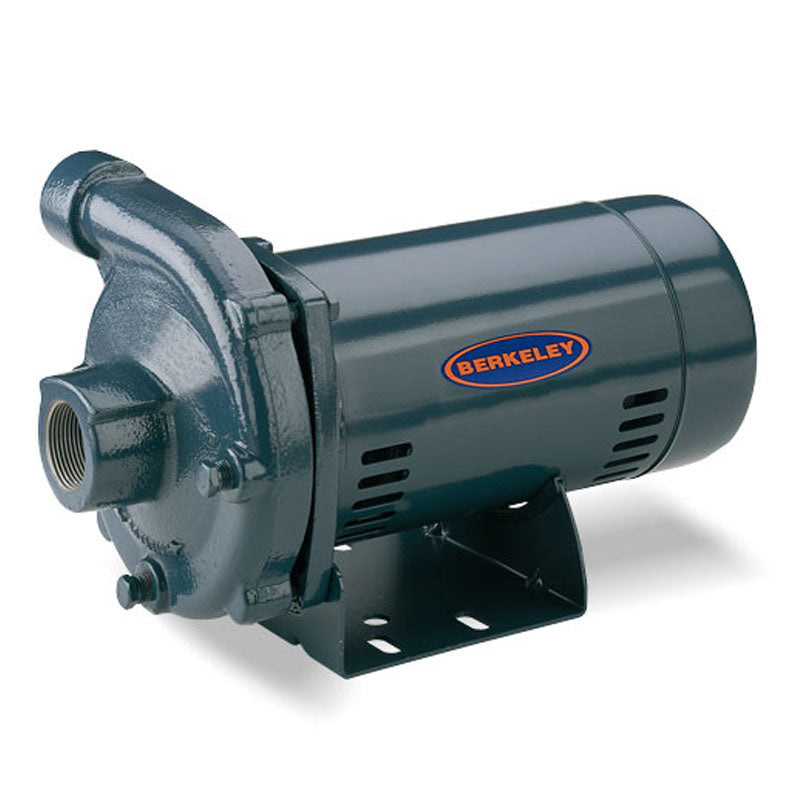

S39527-575T Berkeley Centrifugal Pumps (2-1/2 HP, 3 Phase, 575 Voltage, 1-1/2 Discharge, High Head, CP/CB Series)
S39527-575T Berkeley Centrifugal Pumps (2-1/2 HP, 3 Phase, 575 Voltage, 1-1/2 Discharge, High Head, CP/CB Series)
No reviews
SKU:S39527-575T
Precio habitual
$1,781.13 USD
Precio habitual
Precio de oferta
$1,781.13 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Berkeley S39527-575T, High and Medium Head Cast Iron Centrifugal Pumps Type, CP/CB Series, 2-1/2 HP, 3 Phase, 575 Voltage, 2 Suction, 1-1/2 Discharge, Noryl Impeller, High Head,
| Applications | |
| The CP/CB Series Pumps have a heavyduty cast iron construction and are offered in high and medium head models, with Noryl or silicon bronze impeller. APPLICATIONS Water systems and sprinkling for homes, farms and industry. | |
| Features | |
| 1/3 through 2-1/2 HP High head and medium head models, with heavy-duty motors, easy service design and four-position discharge. | |
| Drain Port Provided for easy winterizing. | |
| Medium Head Models Deliver up to 110' of head with capacities to 140 GPM. | |
| High Head Models Deliver up to 140' of head with capacities to 90 GPM. | |
| Easy Serviceability All models include replaceable wear ring and feature back pull-out design. | |
| CP Series with Noryl Impellers Abrasion-resistant for normal applications with working temperatures to 140F. | |
| CB Series with Silicon Bronze Impellers CB pumps equipped with shaft seals rated for temperatures to 225F. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
S39527-575T |
Type |
High and Medium Head Cast Iron Centrifugal Pumps |
Series |
CP/CB |
Model |
CP1-1/2TPHS |
HP |
2-1/2 |
Phase |
3 |
Voltage |
575 |
Suction |
2 |
Discharge |
1-1/2 |
Impeller |
Noryl |
Feature |
High Head |
Body and Seal Plate |
Close-grained cast iron |
Base |
Steel 12 gauge |
Max. Operating Pressure |
100 PSI |
Shaft |
416 stainless steel |
Max Capacities |
90 GPM |
