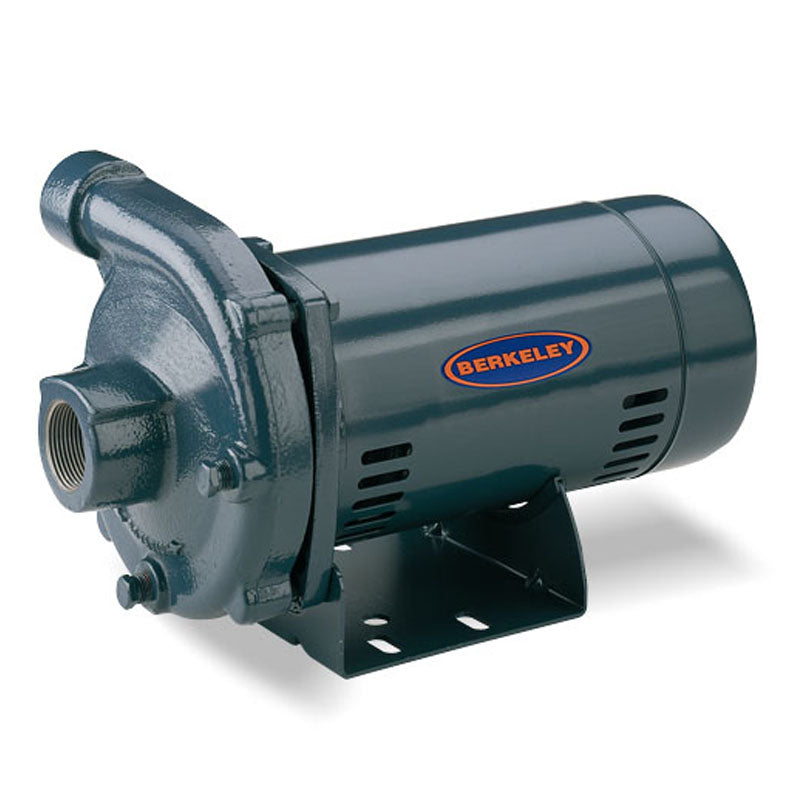

S39525 Berkeley Centrifugal Pumps (2 HP, 3 Phase, 208-230/460 Voltage, 1-1/4 Discharge, High Head, CP/CB Series)
S39525 Berkeley Centrifugal Pumps (2 HP, 3 Phase, 208-230/460 Voltage, 1-1/4 Discharge, High Head, CP/CB Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:S39525
Precio habitual
$1,432.31 USD
Precio habitual
$2,940.00 USD
Precio de oferta
$1,432.31 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Berkeley S39525, High and Medium Head Cast Iron Centrifugal Pumps Type, CP/CB Series, 2 HP, 3 Phase, 208-230/460 Voltage, 1-1/2 Suction, 1-1/4 Discharge, Noryl Impeller, High Head,
| Applications | |
| The CP/CB Series Pumps have a heavyduty cast iron construction and are offered in high and medium head models, with Noryl or silicon bronze impeller. APPLICATIONS Water systems and sprinkling for homes, farms and industry. | |
| Features | |
| 1/3 through 2-1/2 HP High head and medium head models, with heavy-duty motors, easy service design and four-position discharge. | |
| Drain Port Provided for easy winterizing. | |
| Medium Head Models Deliver up to 110' of head with capacities to 140 GPM. | |
| High Head Models Deliver up to 140' of head with capacities to 90 GPM. | |
| Easy Serviceability All models include replaceable wear ring and feature back pull-out design. | |
| CP Series with Noryl Impellers Abrasion-resistant for normal applications with working temperatures to 140F. | |
| CB Series with Silicon Bronze Impellers CB pumps equipped with shaft seals rated for temperatures to 225F. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
S39525 |
Type |
High and Medium Head Cast Iron Centrifugal Pumps |
Series |
CP/CB |
Model |
CP1-1/4TPHS |
HP |
2 |
Phase |
3 |
Voltage |
208-230/460 |
Suction |
1-1/2 |
Discharge |
1-1/4 |
Impeller |
Noryl |
Feature |
High Head |
Body and Seal Plate |
Close-grained cast iron |
Base |
Steel 12 gauge |
Max. Operating Pressure |
100 PSI |
Shaft |
416 stainless steel |
Max Capacities |
90 GPM |
