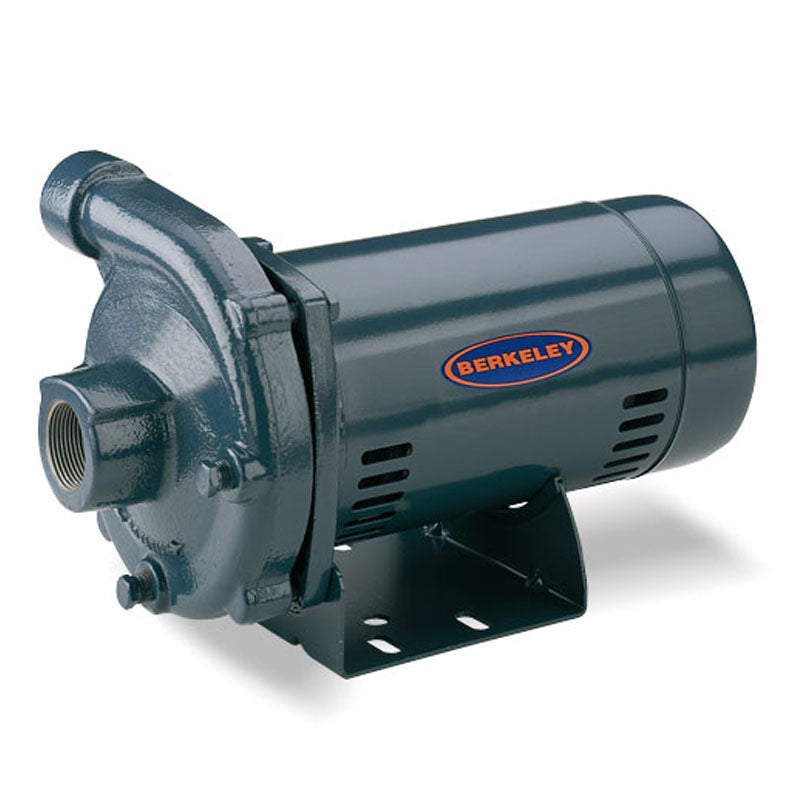

S39520 Berkeley Centrifugal Pumps (1 HP, 1 Phase, 115/230 Voltage, 1 Discharge, High Head, CP/CB Series)

Berkeley S39520, High and Medium Head Cast Iron Centrifugal Pumps Type, CP/CB Series, 1 HP, 1 Phase, 115/230 Voltage, 1-1/4 Suction, 1 Discharge, Noryl Impeller, High Head,

Applications
The CP/CB Series Pumps have a heavyduty cast iron construction and are offered in high and medium head models, with Noryl or silicon bronze impeller. APPLICATIONS Water systems and sprinkling for homes, farms and industry.
Features
1/3 through 2-1/2 HP High head and medium head models, with heavy-duty motors, easy service design and four-position discharge.
Drain Port Provided for easy winterizing.
Medium Head Models Deliver up to 110' of head with capacities to 140 GPM.
High Head Models Deliver up to 140' of head with capacities to 90 GPM.
Easy Serviceability All models include replaceable wear ring and feature back pull-out design.
CP Series with Noryl Impellers Abrasion-resistant for normal applications with working temperatures to 140F.
CB Series with Silicon Bronze Impellers CB pumps equipped with shaft seals rated for temperatures to 225F.

Specifications
Brand	Berkeley
Catalog Number	S39520
Type	High and Medium Head Cast Iron Centrifugal Pumps
Series	CP/CB
Model	CP1XPHS
HP	1
Phase	1
Voltage	115/230
Suction	1-1/4
Discharge	1
Impeller	Noryl
Feature	High Head
Body and Seal Plate	Close-grained cast iron
Base	Steel 12 gauge
Max. Operating Pressure	100 PSI
Shaft	416 stainless steel
Max Capacities	90 GPM

Support Documents (pdf)
Notes
Manual
