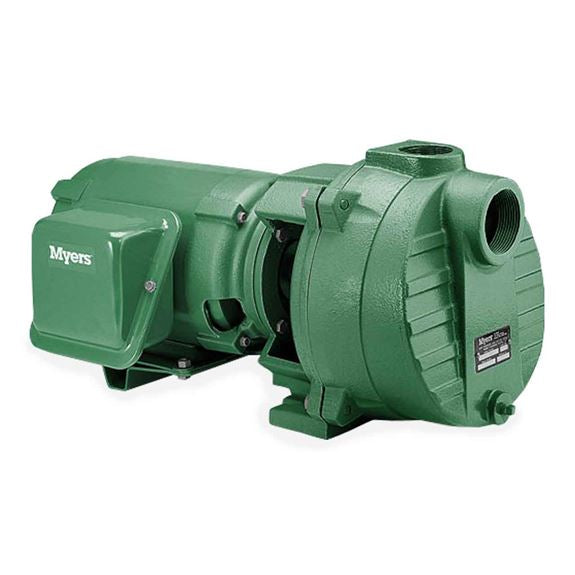

QP50B-3 Myers (26596E010) Self-Priming Centrifugal Pump, QP Series, 5 HP, 208-230/460 Volts, 3 Phase, 2" NPT Discharge, 2-1/2" NPT Suction)

QP50B-3 Myers (26596E010) Self-Priming Centrifugal Pump, QP Series, 5 HP, 230 Volts, 1 Phase, 2" NPT Discharge, 2-1/2" NPT Suction, 132 GPM Max

The Quick Prime Self-Priming Centrifugal Pump delivers  strong dependable performance for demanding jobs where a  lot of water is required over a long period of time. The heavy  duty 184JM motor, brass impeller, and large capacity rugged  cast iron pump end deliver reliable and continuous high  performance service. Not for use with corrosive chemicals or  flammable liquids.

APPLICATIONS:
Commercial and residential application that require large flow  rates. These include sprinkler systems, irrigation systems,  booster service, water transfer, dewatering, fire protection,  car washing, and other large cleaning and maintenance jobs.

SPECIFICATIONS

- High tensile cast iron pump case and motor bracket.
- Brass impeller (optional engineered composite impeller
available for certain models).
- Ceramic/glass thermoset diffuser, with stainless steel
wear ring.
- Square rubber sealing rings.
- Carbon/ceramic shaft seal

BODY CONSTRUCTION:  High Tensile Cast Iron
MAXIMUM CAPACITY:  134 GPM
FLOW at 10' LIFT and 30 PSI:  107 GPM
MAXIMUM DISCHARGE PRESSURE:  77 PSI
SUCTION SIZE:  2-1/2" NPT
DISCHARGE SIZE:  2" NPT
AMP DRAW (at full load):  1-Phase: 29 amps 3-phase: 13.4 amps on 208v / 13.2 amps on 230v / 6.6 amps on 460v
VOLTAGE:  230v 1-phase or 208v / 230v / 460v 3-phase
IMPELLER:  Lead-Free Brass
DIFFUSER:  Ceramic / Glass Composite
EXTERIOR COATING:  Durable Enamel Paint
