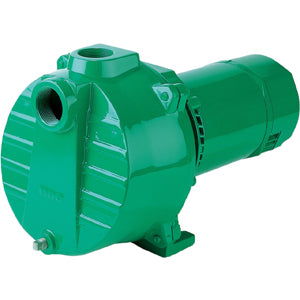

QP20-3 Myers Quick Prime Self Priming Centrifugal Pump (2 HP, Three Phase, 230 Voltage, 60 Hz, 1-1/2" NPT Suction, 50 Max PSI, QP Series)

Myers QP20-3, Quick Prime Self Priming Centrifugal Pump Type, QP Series, 2 HP, Three Phase, 230 Voltage, 60 Hz, 1-1/2" NPT Suction, 50 Max PSI,

Applications
Water systems lawn and gardening sprinkling, car washing, or other big cleaning and maintenance jobs
Features
Ruggedly built to meet the demands for long, hard continuous service without over-working or overloading the motor
Manufactured to precise performance specifications
Corrosion resistant impellers for long life
Simple design for powerful, efficient operation and easy servicing
Proper impeller alignment for smooth, quiet running
Unique diffuser design provides quick automatic prime. No additional water needed for repriming after installation
Common brackets, cases and gaskets on all sizes --- simplified parts selection
High tensile gray iron pump case and motor bracket
Square rubber sealing rings
Proven thermoset diffuser
Engineered composite impeller

Specifications
Brand	Myers
Catalog Number	QP20-3
Type	Quick Prime Self Priming Centrifugal Pump
Series	QP
HP	2
Phase	Three
Voltage	230
Hz	60
Suction	1-1/2" NPT
Discharge	1-1/2" NPT
Max Feet	116
Max PSI	50
Body Construction	High-Tensile Gray Iron
Notes	See Support Documents
