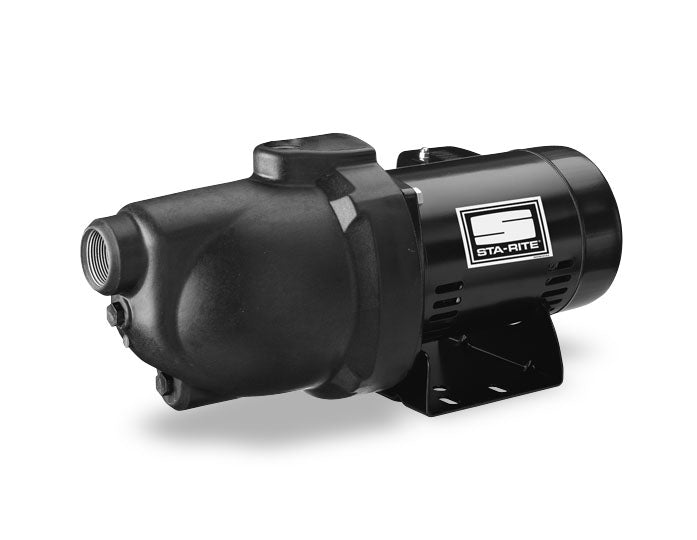

PNC-10 STA-RITE Shallow Well Jet Pump, Corrosion Resistant (1/2 HP, 115/230V, 1 Phase, 25' Max. Lift, 6.4 GPM @ 10 FT/40 PSI)

PNC-10, 1/2 HP, 115/230 Volts, 1 Phase, 30-50 PSI Pressure Switch Setting, 1-1/4" NPT Suction Size, 1" NPT Discharge Size, 25' Max. Lift, 6.4 GPM @ 10 FT/40 PSI,

Applications
Water Systems, Booster Pump, Marine Use, Mist Sprayers - Poultry, Fountains & Water Features
Features
PN Series Shallow Well Jet Pumps are corrosion- and abrasion-resistant and are ideal for wells with pumping levels of 25' or less
Fiberglass-reinforced thermoplastic body provides total corrosion resistance and high resistance to abrasion
Shallow-well jet has corrosion-resistant polypropylene nozzle and venturi
Stainless steel shaft and dual heavy-duty ball bearings
Pressure Switch included - allows for cut-in pressure adjustments
Polypropylene diffuser allows pump to prime faster, handle more air
Self-priming after the pump housing is initially filled with water

Specifications
Brand	STA-RITE
Model Number	PNC-10
Type	Self-Priming Shallow Well Jet Pump
STA-RITE Pump Series	PN Series - Corrosion Resistant
HP	1/2
Volts	115/230
Phase	1
Pressure Switch Setting	30-50 PSI
Suction Size	1-1/4" NPT
Discharge Size	1" NPT
Max. Lift	25'
Max. Temperature	140F
Max. Inlet Pressure	50 PSI
Shut-off Pressure	77 PSI
GPM @ 10 FT/40 PSI	6.4
Max. GPM	8.5
Pump Body	Fiberglass Reinforced Thermoplastic
Shaft	Stainless Steel
Impeller	Engineered Polymer
Nozzle & Venturi	Polypropylene
Diffuser	Reinforced Polypropylene
Pressure Switch	Included
Warranty	1 Year
Weight lbs.	21
Notes & Pump Curve	See Support Documents
Pump Manual	See Support Documents

Support Documents (pdf)
Notes & Pump Curve
Installation & Parts Manual
