Sta-Rite Pumps

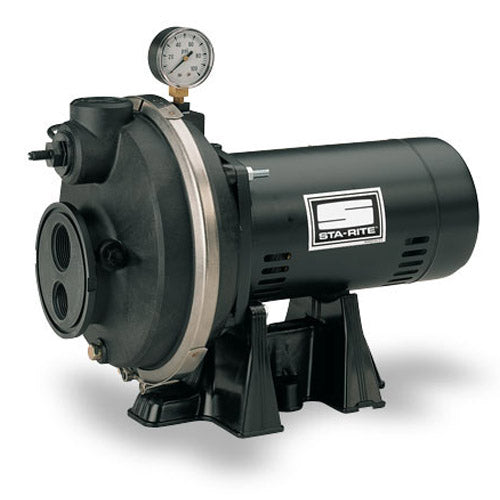

PLF-2L Sta-Rite Pumps Sewage PumpsConvertible Deep Well Jet Pumps (1-1/2 HP, 1-1/4" Suction, 1" Discharge)

PLF-2L Sta-Rite Pumps Sewage PumpsConvertible Deep Well Jet Pumps (1-1/2 HP, 1-1/4" Suction, 1" Discharge)

PLF-2L

$973.87 USD
$1,999.00 USD $973.87 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Sta-Rite Pumps PLF-2L, PL Series , 1-1/2 HP, 1-1/4" Suction, 1" Discharge,
Applications
Water systems and sprinklingfor homes, farms and cottages. Durability and corrosion resistance are built into every PL Series Pump, due to the rugged fiberglass reinforced thermoplastic pump construction. The engineered composite components are lightweight yet extremely resistant to sand and abrasive wear. The non-corrosive design and exceptional strength assure years of troublefree operation.
Features
Superior Rustproof Construction: Pump body is Dura-Glas fiberglass reinforced thermoplasticlightweight, rustproof and exceptionally strong. All components in contact with water are resistant to the corrosive and abrasive forces found in the most aggressive water conditions.
Precision Diffuser: Multi-port, reinforced polypropylene design primes faster and handles more air.
Precision-Molded Impeller: Precisionmolded Noryl gives perfect balance and ultra smoothness for highest performance and efficiency.
Pressure Regulator and Gauge: Performance-proven, simple, built-in pressure regulator is adjustable for best performance on all deep well installations. Pressure gauge included.
Shaft Seal: Stainless steel heat sink provides maximum cooling of the mechanical shaft seal.
Heavy-Duty Motor: Dustproof canopy completely encloses electrical components and provides dust, dirt and insect protection. Ventilating air cannot contaminate vital switching components. Permanently lubricated, heavy-duty ball bearings ensure smooth, quiet operation and extended motor life.
Easy Serviceability: PL pumps are disassembled by removing the stainless steel clamp. Piping does not have to be disturbed. Seal replacement takes only a few minutes. Control room motor design makes all components easily accessible.

Specifications

Brand
Sta-Rite Pumps
Catalog Number
PLF-2L
Type
Corrosion-resistant convertible deep well jet pumps
Series
PL Series
Model
PLF
HP
1-1/2
Description
Deep Well Jet Pump
Suction
1-1/4"
Discharge
1"
Drive
1"
Volts
115/230
Approx. Weight (lbs)
36
Construction
Dura-Glas
Impeller
Noryl
Venturi
Noryl
O-Ring
Buna-N
Clamp
Stainless steel
Shaft
Stainless steel
Pressure Switch Pre-Set
3050 PSI
Suction Ports
Suction-over-Drive
S.W. Jet Number
PKG 1- 24N
Notes
See Support Documents
