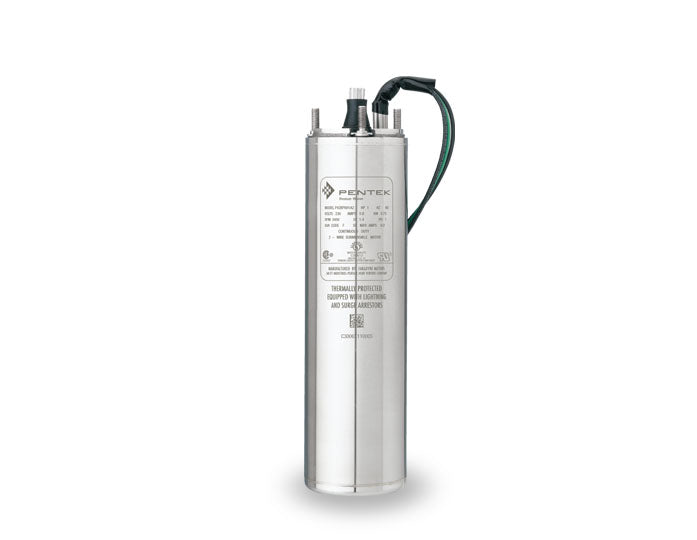

P43B0020A3-C PENTEK 4" Motor (2 HP, 230 Volts, 3 Phase)
P43B0020A3-C PENTEK 4" Motor (2 HP, 230 Volts, 3 Phase)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:P43B0020A3-C
Precio habitual
$698.62 USD
Precio habitual
$1,434.00 USD
Precio de oferta
$698.62 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
P43B0020A3-C, PENTEK XE Series Series, 2 HP, 230 Volts, 3 Phase, 60 Hz, 1.25 Service Factor, PENTEK 4" Motor
| Applications | |
| Water systems for residential, industrial, commercial, multiple housing and farm clean water use. | |
| Features | |
| Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads | |
| Designed to provide many years of service under severe-duty opration | |
| All stainless-steel exterior | |
| Professional-grade Class F compliant motor insulation allows for longer service life | |
| Equipped with Surge Arrestor | |
| Automatic Thermal Protection | |
Specifications | |
Brand |
STA-RITE |
Model Number |
P43B0020A3 |
Type |
4" Submersible Motor |
Series |
PENTEK XE Series |
HP |
2 |
kW |
1.5 |
Volts |
230 |
Phase |
3 |
Hz |
60 |
Service Factor |
1.25 |
Full Load Amps |
6.5 |
Max Load (SF Load Amps) |
7.6 |
Line to Line Resistance Ohms |
1.8-2.4 |
Locked Rotor Amps |
44.0 |
Thrust Rating |
900 |
Length In. |
13.8 |
Weight lbs. |
27.4 |
Notes |
See Support Documents |
Support Documents (pdf) |
