PENTEK

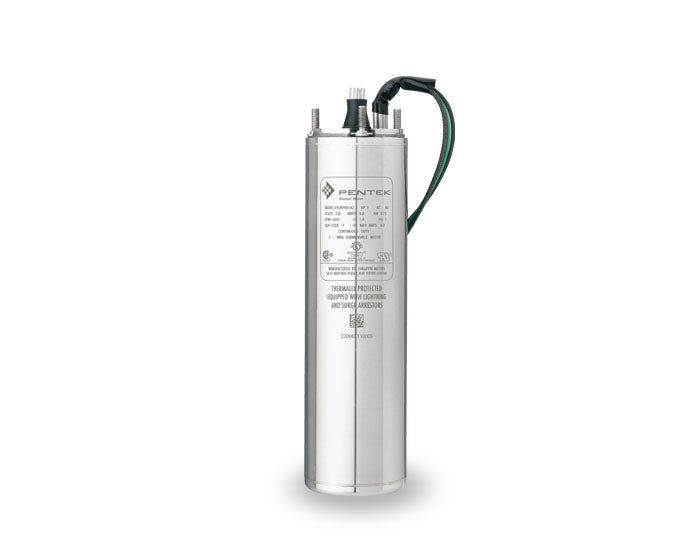

P42B0010A2-C PENTEK 4" Motor (1 HP, 230 Volts, 1 Phase, 2 Wire)

P42B0010A2-C PENTEK 4" Motor (1 HP, 230 Volts, 1 Phase, 2 Wire)

SKU:P42B0010A2-01-C

Precio habitual $561.23 USD
Precio habitual Precio de oferta $561.23 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

P42B0010A2-C, PENTEK XE Series Series, 1 HP, 230 Volts, 1 Phase, 2 Wire , 1.4 Service Factor, PENTEK 4" Motor
Applications
Water systems for residential, industrial, commercial, multiple housing and farm clean water use.
Features
Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
Designed to provide many years of service under severe-duty opration
Permanent Split Capacitor (PSC) insures quiet operation and improved operating efficiency
All stainless-steel exterior
Professional-grade Class F compliant motor insulation allows for longer service life
Equipped with Surge Arrestor
Automatic Thermal Protection

Specifications

Brand
STA-RITE
Model Number
P42B0010A2
Type
4" Submersible Motor
Series
PENTEK XE Series
HP
1
kW
0.75
Volts
230
Phase
1
Hz
60
# of Wires
2 Wire
Service Factor
1.4
Full Load Amps
7.9
Max Load (SF Load Amps)
9.1
Locked Rotor Amps
21.7
Main Resistance
4.2-5.2
Start Resistance
-
Thrust Rating
700
Recommended Control
N/A
Control
Not Included
Length In.
13.3
Weight lbs.
24.5
Notes
See Support Documents

Support Documents (pdf)
