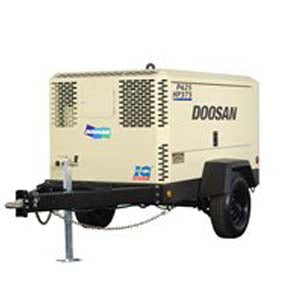

P425/HP375WCU-T4F Doosan Portable Air Compressor (425/375 CFM, 80-125 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)
P425/HP375WCU-T4F Doosan Portable Air Compressor (425/375 CFM, 80-125 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)
No reviews
SKU:P425/HP375WCU-T4F
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
P425/HP375WCU-T4F Doosan Portable Air Compressor (425/375 CFM, 80-125 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)
The two-in-one P425/HP375WCU-T4F portable air compressor from Doosan Portable Power delivers dual pressures with airflow ranging from 375 to 425 cfm and pressure ranging from 100 to 150 psi. The compact design and small footprint of the P425/HP375WCU-T4F air compressor is consistent with other portable air compressors offered by Doosan Portable Power. In addition to its compact size and dual pressure availability, the P425/HP375WCU-T4F air compressor can be mounted on truck beds for increased versatility, making it the idea compressor for a variety of markets and applications.
The two-in-one P425/HP375WCU-T4F portable air compressor from Doosan Portable Power delivers dual pressures with airflow ranging from 375 to 425 cfm and pressure ranging from 100 to 150 psi. The compact design and small footprint of the P425/HP375WCU-T4F air compressor is consistent with other portable air compressors offered by Doosan Portable Power. In addition to its compact size and dual pressure availability, the P425/HP375WCU-T4F air compressor can be mounted on truck beds for increased versatility, making it the idea compressor for a variety of markets and applications.
P425/HP375WCU-T4F Air Compressor
COMPRESSOR
**LOW PRESSURE / HIGH PRESSURE**
Free-Air Delivery - cfm (m³/min) 425 (12.0) / 375 (10.6)
Rated operating Pressure - psig (bar) 100 (7.0) / 150 (10.3)
Pressure range - psig (bar)80 - 125 (5.5 - 8.6) / 80 - 175 (5.5 - 12.1)
Air Discharge outlet size - in (mm) 1.25 (31.8) / 1.25 (31.75)
Air Discharge outlet Quantity - 1
Fuel Tank Capacity - gal (L) 60 (227) / 63 (227)
DEF Tank Capacity - gal (L) 5 (19) / 5 (19)
Hours of operation @ Full Load 10.9 / 10.6
ENGINE
Make/model Cummins/QSB4.5Cummins/QSB4.5
Emissions Tier Level Tier 4 Final (T4F)
Number of Cylinders 4
Displacement - cu in (L) 272 (4.5) / 272 (4.5)
Rated speed - rpm 2200 / 1950
Idle speed - rpm 1500
Bhp @ rated speed (kW) 130 (97) / 138 (102.9)
Electrical 24
DIMENSIONS w/ running gear
Length - in (mm) 152.5 (3874) / 152.5 (3874)
Width - in (mm) 78.2 (1986) / 78.2 (1986)
Height - in (mm) 69.9 (1775) / 69.9 (1775)
Track Width - in (mm) 66.6 (1692) / 66.6 (1692)
Tire size - in15
Shipping Weight - w/o fuel - lb (kg) 4470 (2027) / 4470 (2027)
Working Weight - w fuel - lb (kg) 5030 (2281) / 5030 (2281)
DIMENSIONS w/o running gear
Length - in (mm) 104.2 (2647) / 104.2 (2647)
Width - in (mm) 60.7 (1542) / 60.7 (1542)
Height - in (mm) 61 (1549) / 61 (1549)
Shipping Weight - w/o fuel - lb (kg) 4207 (1908) / 4207 (1908)
Working Weight - w fuel - lb (kg) 4767 (2162) / 4767 (2162)
