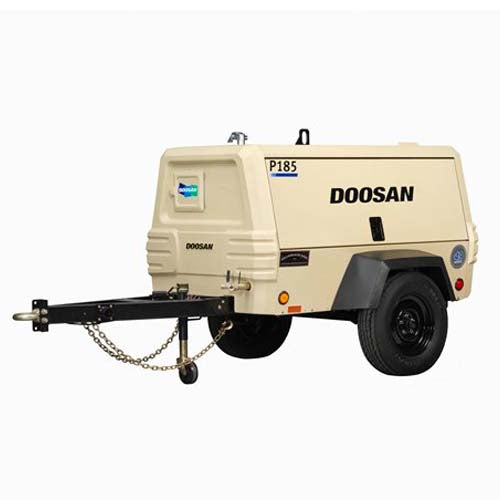

P185WDO-T4F Doosan Portable Air Compressor (185 CFM, 80-125 PSIG, 3/4" Discharge, Doosan D24 Engine)
P185WDO-T4F Doosan Portable Air Compressor (185 CFM, 80-125 PSIG, 3/4" Discharge, Doosan D24 Engine)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:P185WDO-T4F
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
P185WDO-T4F Doosan Portable Air Compressor (185 CFM, 80-125 PSIG, 3/4" Discharge, Doosan D24 Engine)
Powered by a Tier 4 Final-compliant Doosan engine, the P185WDO portable air compressor meets the needs of a variety of applications. The P185 is perfect for powering handheld air tools, sandblasting, sprinkler and irrigation line blow-out, and cable laying and pipeline testing.
P185WDO-T4F Portable Air Compressor
Powered by a Tier 4 Final-compliant Doosan engine, the P185WDO portable air compressor meets the needs of a variety of applications. The P185 is perfect for powering handheld air tools, sandblasting, sprinkler and irrigation line blow-out, and cable laying and pipeline testing.
P185WDO-T4F Portable Air Compressor
Compressor Rotary Screw/Single-Stage
Free-Air Delivery – cfm (m3/min)185 (5.2)
Rated Operating Pressure – psig (bar)100 (6.9)
Pressure Range – psig (bar) 80 – 125 (5.5 – 8.6)
Air Discharge Outlet Size – in (mm)0.75 (19)
Air Discharge Outlet Quantity2
Fuel Tank Capacity – gal (L)34.5 (130.6)
Limiting Ambient Temp F (Celsius)120 (48)
Engine
Make/ModelDoosan D24
Emissions Tier LevelTier 4 Final (T4F)
Number of Cylinders - 4
Displacement – cu in (L)147 (2.4)
Rated Speed – rpm 2600
Idle Speed – rpm 1700
Bhp @ Rated Speed (kW) 49 (36.4)
Electrical - volts 12
Hours of Operation @ Full Load12.2
Dimensions with Running Gear
Length – in (mm) 136.7 (3473)
Width – in (mm) 68.6 (1746)
Height – in (mm) 67.3 (1710)
Track Width – in (mm)60.3 (1530)
Tire Size – in 15
Shipping Weight – w/o fuel – lb (kg)2305 (1046)
Working Weight – w fuel – lb (kg)2551 (1157)
Dimensions without Running Gear
Length – in (mm) 88.5 (2248)
Width – in (mm) 49.3 (1252)
Height – in (mm) 56.3 (1431)
Shipping Weight – w/o fuel – lb (kg) 2095 (950)
Working Weight – w fuel – lb (kg) 2341 (1062)
Width – in (mm) 49.3 (1252)
Height – in (mm) 56.3 (1431)
Shipping Weight – w/o fuel – lb (kg) 2095 (950)
Working Weight – w fuel – lb (kg) 2341 (1062)
