Century

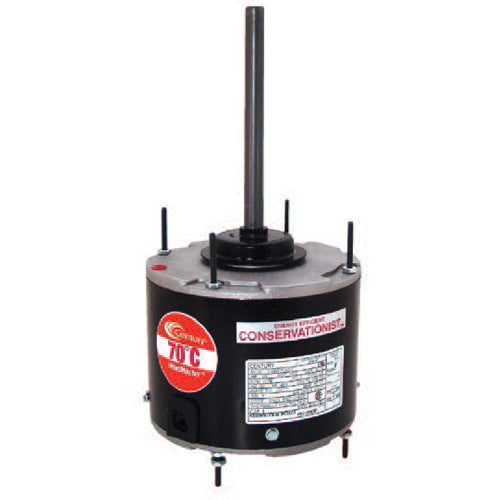

ORM5488F Century Heatmaster 4-IN-1 Motor (1/3-1/8 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation)
ORM5488F Century Heatmaster 4-IN-1 Motor (1/3-1/8 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:ORM5488F
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Century / Century ORM5488F, Multi HP Condesor Fan Motor Type, 1/3-1/8 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation,
| Applications | |
| CLASS F INSULATION - 70C (158F) MAX AMBIENT - MULTI-HORSEPOWER REPLACEMENT MOTORS. Easy installation, one capacitor (7.5MFD / 370V) and two leads. | |
| Features | |
| 70C (158F) max ambient | |
| UL/CSA approved Class F insulation | |
| High-temperature UL/CSA approved overload protector | |
| All HeatMaster motors carry a warranty running until the sooner to occur of 2 years from the date of installation or 3 years from the date of manufacture | |
| Energy-efficient PSC design | |
| Water-resistant reversing plug | |
| Double-sealed ball bearings, or dependable all-angle sleeve bearings | |
| All-angle mount | |
| Mounts by belly band, adjustable extended thru-bolts, or OEM compatible mounting holes, with screws supplied | |
| 60 hertz | |
| 1 speed | |
Specifications | |
Brand |
A.O. Smith |
Catalog Number |
ORM5488F |
Type |
Multi HP Condesor Fan Motor |
Series |
HEATMASTER 4-IN-1 MOTORS |
HP |
1/3-1/8 |
Volts |
208-230 |
Amps |
2.1 |
RPM |
825 |
Frame Size |
48 |
Rotation |
Reversible |
Capacitor |
7.5MFD / 370V |
Bearings |
Sleeve |
Shell Length |
4.86 Inches |
Shaft Length |
1/2" x 6-1/2" |
Warranty |
1 Year |
Support Documents (pdf) |
