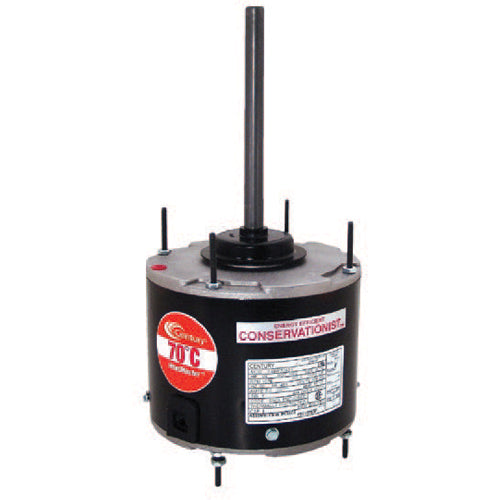

ORM5458BF Century Heatmaster 4-IN-1 Motor (1/3-1/6 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation)

ORM5458BF Century Heatmaster 4-IN-1 Motor (1/3-1/6 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation)

ORM5458BF

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Century / Century ORM5458BF, Multi HP Condesor Fan Motor Type, 1/3-1/6 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation,
Applications
CLASS F INSULATION - 70C (158F) MAX AMBIENT - MULTI-HORSEPOWER REPLACEMENT MOTORS. Easy installation, one capacitor (7.5MFD / 370V) and two leads.
Features
70C (158F) max ambient
UL/CSA approved Class F insulation
High-temperature UL/CSA approved overload protector
All HeatMaster motors carry a warranty running until the sooner to occur of 2 years from the date of installation or 3 years from the date of manufacture
Energy-efficient PSC design
Water-resistant reversing plug
Double-sealed ball bearings, or dependable all-angle sleeve bearings
All-angle mount
Mounts by belly band, adjustable extended thru-bolts, or OEM compatible mounting holes, with screws supplied
60 hertz
1 speed

Specifications

Brand
A.O. Smith
Catalog Number
ORM5458BF
Type
Multi HP Condesor Fan Motor
Series
HEATMASTER 4-IN-1 MOTORS
HP
1/3-1/6
Volts
208-230
Amps
2.1
RPM
1075
Frame Size
48
Rotation
Reversible
Capacitor
7.5MFD / 370V
Bearings
Ball
Shell Length
4.00 Inches
Shaft Length
1/2" x 6-1/2"
Warranty
1 Year
