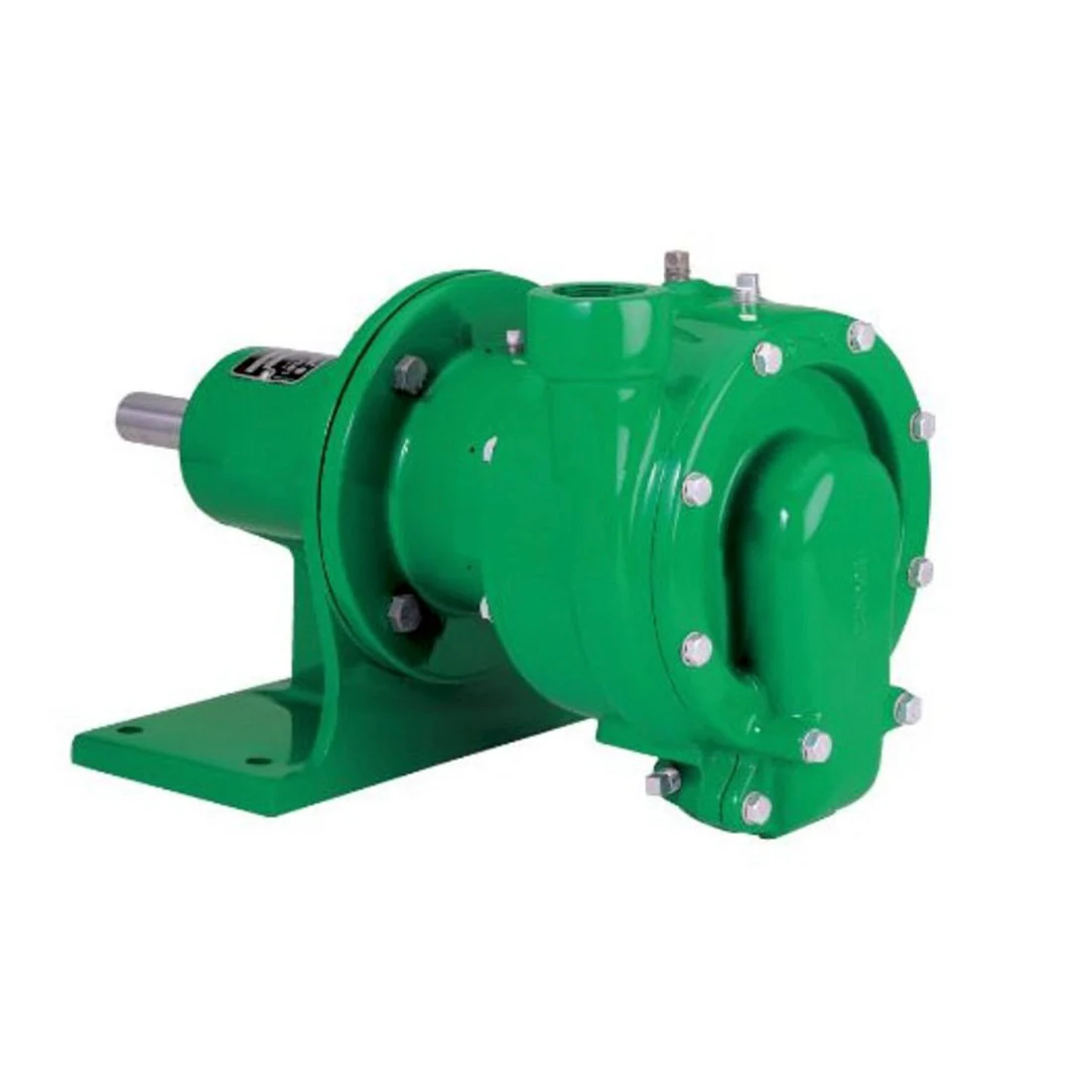

Myers 15034E001, Model I2CI-20/2C95, I2C Series, Two Stage Centrifugal Pump End ONLY (Motor Not Included) , 2" NPT Suction, 1-1/2" NPT Discharge, 7" Impeller, All Iron

Myers 15034E001, Model I2CI-20/2C95, I2C Series, Two Stage Centrifugal Pump End, 2" NPT Suction, 1-1/2" NPT Discharge, 7" Impeller, All Iron

Myers I2CI Two-Stage Centrifugal Pump

This pump delivers high performance with as rugged design for years of trouble-free service.  The I2CI will easily prime up to 15 feet of total suction lift. The dynamically balanced impeller produces steady, quiet and vibration-free performance at all pressures.

Features

• Volute casing made of high tensile gray iron casting with wear rings. Threaded discharge tapping rotates to 8 positions
• Seal bracket has a high tensile gray iron casting with threaded suction tapping. Seal bracket has oil chamber to lubricate and cool the seal face
• Drain plugs are conveniently located so case can be completely drained in any discharge position
• Heavy duty bracket provides rigid support for liquid end. Holds shaft bearings in perfect alignment with pump case for quiet operation
• Heavy duty ball bearings, sealed on outboard side, lubricated at the factory
• Dual enclosed epoxy coated, high tensile gray iron impellers are hydraulically and dynamically balanced. Mounted back-to-back for reduced axial thrust, results in vibration free operation and minimum bearing load
• Replaceable wear rings and interstage bushings help to eliminate wear of the casting in the impeller hub and ring area
• Mechanical shaft seal located on suction side to provide lower pressure differential and longer seal life and maximum positive inlet pressure of 75 PSI. Standard seal will accommodate 220°F
• Pump shaft manufactured from tough corrosion resistant 416 stainless steel
• Molded rubber deflector protects bearings from moisture and dirt
• Carbon steel snap ring holds bearing/shaft assembly in place, prevents axial movement of the bearings and shaft

Applications

• Booster service
• Irrigation
• Cold and hot water circulation
• Fluid transfer
• Boiler feed
• Car wash installations
• Water reclamation
• Water supply
• Golf course sprinkling
• General industrial and commercial applications
• Jobs requiring pumping clear or noncorrosive liquids
