Myers Pumps

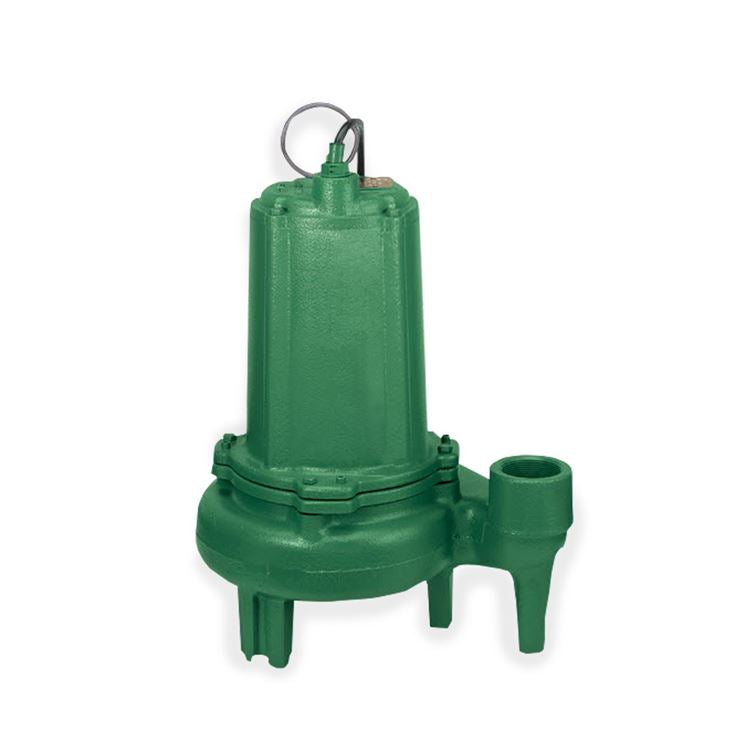

MWS39150520M Pentair Myers Pumps Cast Iron Submersible Sewage Pumps (1-1/2 HP, 575 Volts, Manual Mechanical Switch, 3" Discharge)

MWS39150520M Pentair Myers Pumps Cast Iron Submersible Sewage Pumps (1-1/2 HP, 575 Volts, Manual Mechanical Switch, 3" Discharge)

[COUNT] shoppers are looking at this right now

MWS39150520M

$1,988.27 USD
$3,728.00 USD $1,988.27 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

View price in cart
Myers Pumps MWS39150520M, MWS39 Series , 1-1/2 HP, 575 Volts, Manual Mechanical Switch Type,

Applications
Sewage and Wastewater Removal and Transfer, Sump Drainage
Features
Impeller Non-clog vortex style, pump out vanes for seal protection
Dual Shaft Seals Primary mechanical seal with a secondary selflubricating lip seal.
Bearing and Mechanical Seal Permanently lubricated for long life.
Serviceability Heavyduty lift-out ring, field serviceable.
Overload Protection Built-in thermal overload with automatic reset on single phase
Cord Design Prevents oil loss from and moisture protection for motor
Controls Standard controls available for automatic operation.
Motor Information: 1, 1-1/2 and 2 HP, 1725 RPM, 230 Volt, single-phase, or 208- 230/460 and 575 volt threephase, 60 Hz. Oil-filled. PSC with thermal overload with built-in thermal overload protection with automatic reset and permanent split capacitor on single-phase only.
Shaft Seal: Primary: Mechanical type 21 or equal, Buna-N elastomers, silicon carbide seal faces, stainless steel metal parts; Secondary: self-lubricating energized nitrile lip seal
Power Cord: Single Phase: 20 UL/CSA Listed. 3 wire 16-3 SJTW-A/SJTW water resistant cord with integrally grounded three-prong plug. Three Phase: 20 UL/CSA Listed. 4 wire 16-4 SJTW-A/SJTW water resistant cord.

Specifications

Brand
Myers Pumps
Catalog Number
MWS39150520M
Type
Cast Iron Submersible Sewage Pumps
Series
MWS39 Series
Model Number
MWS39150520M
HP
1-1/2
Max. Load Amps
3.8
Volts
575
Phase/ Cycles
3/60
Cord Length
20
Mechanical Switch Type
Manual
Discharge
3 NPT
Solid Handling
2"
Intermittent liquid temp
130 F
Min. Basin Diameter (Simplex)
18
Min. Basin Diameter (Duplex)
30"
Motor Housing
Cast Iron
Volute Case
Cast Iron
Notes
See Support Documents

Support Documents (pdf)
