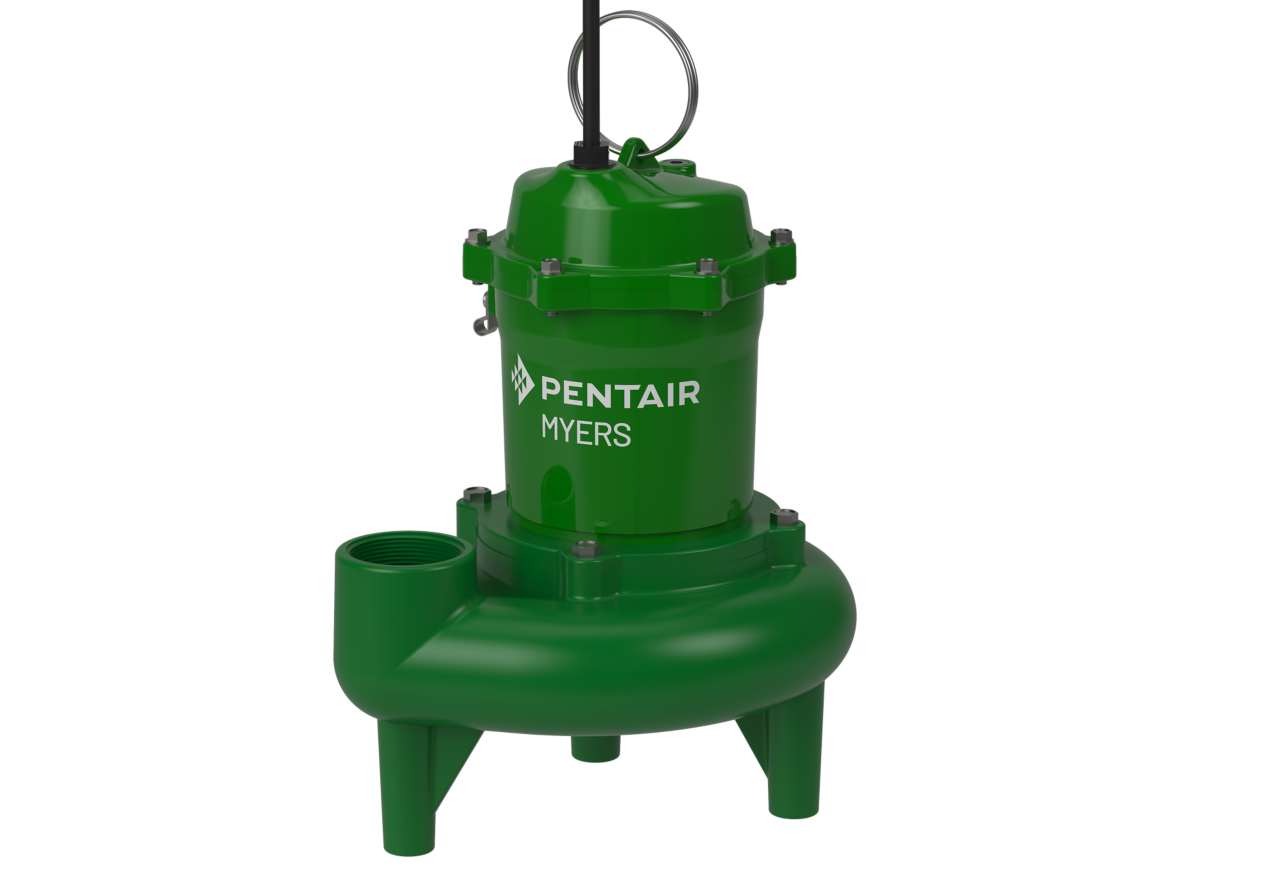

MW50-21P Myers Solids Handling Sewage Pump (Model # 26088D903, 1/2 HP, 230 Volt, 1 Phase, Tethered Automatic Switch, 60 Hz, 4.5 Full Load Amps, 1625 RPM, 2.0" NPT Discharge)
MW50-21P Myers Solids Handling Sewage Pump (Model # 26088D903, 1/2 HP, 230 Volt, 1 Phase, Tethered Automatic Switch, 60 Hz, 4.5 Full Load Amps, 1625 RPM, 2.0" NPT Discharge)
SKU:MW50-21P
No se pudo cargar la disponibilidad de retiro
MW50-21P Myers Sewage Pump (1/2 HP, 230 Volt, 1 Phase, Automatic, 60 Hz, 4.5 Full Load Amps, 1625 RPM, 2.0" NPT Discharge)
The Myers MW50 Series Sewage Pumps are constructed of the most durable combination of materials in order to withstand the harshest sewage environments. The non-clog impeller can
pass up to 2” solids and provides the flow and head required residential and light commercial applications. Models are available for manual operation with external controls, or as automatic operation with tethered, piggyback mechanical float switch.
Pentair Myers MW50 Cast Iron Sewage Pumps
- Residential and Light Commercial Sewage Pump
- Enclosed design for high-efficiency pumping
- High-torque, permanent split capacitor (PSC) motors; no starting switches or relays to wear out
- Lower ball bearing eliminates sleeve bearing wear and significantly reduces motor wear
SPECIFICATIONS:
Capacities: 135 GPM (511 LPM)
Shut-Off Head: 27’ (8.23 m)
Operation: Manual or automatic
Solids Handling: 2” (50.8 mm)
Liquids Handling: Domestic sewage and drain water
Intermittent Liquid Temp.: Up to 140°F (60°C)
Acceptable pH Range: 5-9
Power Cord: 20 foot (6.1 m), 16/3, SJTW
Shaft Seal: Type 6, carbon and ceramic
Discharge NPT: 2”
Housing: Cast iron
Minimum Sump Diameter: Simplex: 24” (61 cm);
Duplex: 36” (91.4 cm)
Volute Case: Class 30 cast iron
