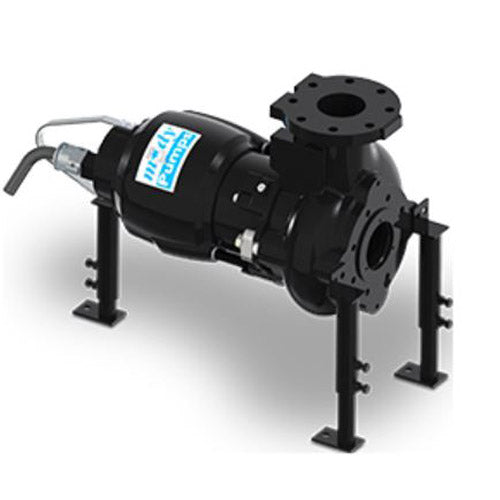

MSPG Mody Pumps Submersible Grinder Pump (7.5-20 HP, 2" Discharge Connection, 150 Max GPM)

MSPG Mody Pumps Submersible Grinder Pump (7.5-20 HP, 2" Discharge Connection, 150 Max GPM)

👁️ [COUNT] People are currently viewing this product.

MSPG

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Mody Pumps MSPG, MSPG2 ,7.5-20 HP, 2" Discharge Connection, 150 Max GPM,
Applications
Submersible Grinder Pump for Dry Pit, Wet Pit, Portable applications.
Features
EASY RETROFIT TO ABS AND MOST OTHER BRAND INSTALLATIONS
HIGH EFFICIENCY MOTORS WITH CLASS H (180C) INSULATION SYSTEM
INTEGRAL ECO-FRIENDLY COOLING SYSTEM
FAST - CHANGE CARTRIDGE MECHANICAL SEALS WITH SILICON CARBIDE SEAL FACES
REDUCER SYSTEM - GRINDER MECHANISM CLEARANCE REDUCTION SYSTEM
SEMI-OPEN, MULTI-VANE, IMPELLER
FAST - LOCK, QUICK-RELEASE, LATCH-BOLTS
OIL TAP DRAIN
POWER CABLE: 25 in length,sized according to IEC, NEC or CSA standards, water/oil resistant EPR insulated, cop per conductor flexible cable and additional control cable for moisture sensor and thermals, capable of continuous submerged operation underwater at temperatures to 90C and to a depth of 66 feet.
SURFACE TREATMENT: Primer with Epoxy and subsequently coated with black air dry enamel.

Specifications

Brand
Mody Pumps
Catalog Number
MSPG
Type
Submersible Grinder Pump
Series
MSPG2
HP
7.5-20
Discharge Connection
2"
Max GPM
150
Max Shut Off Head
350'
Solid Handling
0.393"
Impeller Type
Multi Channel
Power Supply
230/380/460/575 volts
Cooling jacket system -optional
Yes
Max Starts/Stop per hour
15
Motor- VFD rated
2/4 Poles
Max Temp
104 Degrees F.
Max. Submergence
66'
Power Cable
25'
Construction
Cast Iron
Notes
See Support Documents

Support Documents (pdf)
