Mody Pumps

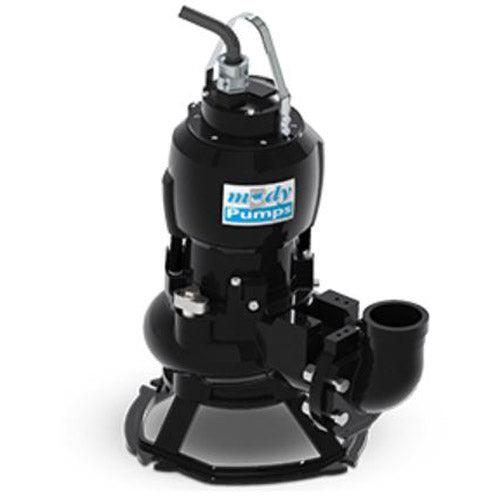

MSP2 Mody Pumps Submersible Waste Water Pump (2.5-25 HP, 1700 GPM)
MSP2 Mody Pumps Submersible Waste Water Pump (2.5-25 HP, 1700 GPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:MSP2
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Mody Pumps MSP2, MSP Series , 2.5-25 HP, 1700 GPM,
| Applications | |
| Submersible Waste Water Pump Applications | |
| Features | |
| High Efficiency Motor | |
| Class H Insulation | |
| Fast-Changing SC/SC Cartidge Mechanical Seals | |
| Modular Design | |
| Adjustable Wear Ring System | |
| Oil Tap Drain | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
MSP2 |
Type |
Wastewater Pumps |
Series |
MSP Series |
HP |
2.5-25 |
Discharge |
3" / 4" / 6" |
GPM |
1700 |
Max Shut-Off Head (Feet) |
140 |
Solids Handling (inches) |
4" |
Impeller Type |
Channel/Vortex |
Power Supply (3-Phase) |
230/380/460/575 volts |
Max Starts/Stop per hour |
15 |
Motor- VFD rated |
2 / 4 / 6 Poles |
Max Temp |
104 Degrees F. |
Max Submergence |
66' |
Casing |
Cast Iron |
Notes |
See Support Documents |
Support Documents (pdf) |
