Mody Pumps

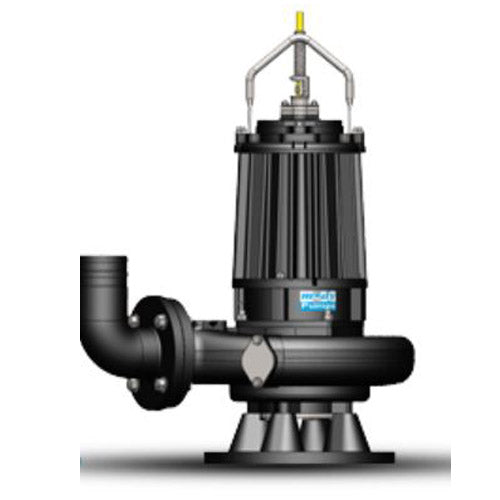

MS6150 Mody Submersible Sewage Pump (14 HP, 10" Discharge, 3700 Max GPM)
MS6150 Mody Submersible Sewage Pump (14 HP, 10" Discharge, 3700 Max GPM)
SKU:MS6150
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Mody Pumps MS6150, MS 6150 Series , 14 HP, 10" Discharge, 3700 Max GPM,
| Applications | |
| Submersible Sewage Pumps. | |
| Features | |
| MOTOR: 6-pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. | |
| POWER SUPPLY: 3 phase, 50/60 Hz, AC Supply. Available in any voltage frequency combination.(208/220/230/380/415/460/575/1000V) | |
| BALL BEARINGS: The rotor shaft is carried in two ball bearings. Double row contact lower bearing is capable of carrying high thrust and radial loads. Upper bearing is a deep groove single row oversized bearing. The bearings are enclosed with high temperature grease-containing special Anti-corrosion additive. | |
| POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU. (4 core std., 7 core optional) | |
| SHAFT SEALS: Compact Tandem Tungsten Carbide/Tungsten Carbide Upper & Lower Mechanical seals minimize shaft overhang and deflection maximizing mean time between service intervals. Moisture sensor available to detect progressive seal wear. | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
MS6150 |
Type |
Electric Submersible Sewage Pumps |
Series |
MS 6150 Series |
HP |
14 |
Discharge |
10" |
Max GPM |
3700 |
Max Shut Off Head |
17' |
Solid Handling |
4" |
Impeller Type |
Channel |
Power Supply |
230/380/460/575 Volts |
Max Starts/Stop per hour |
15 |
Motor- VFD rated |
4 Poles |
Phase |
3 |
Hz |
60 |
Flygt Pump Cross Reference |
3152 LT |
Construction |
Cast Iron |
Max Temp |
104 Degrees F. |
Max Submergence |
33' |
Approx. Weight |
2000 Lbs. |
Max Amps (FLA @ 460V |
18 |
RPM |
1160 |
Notes |
See Support Documents |
Support Documents (pdf) |
