Mody Pumps

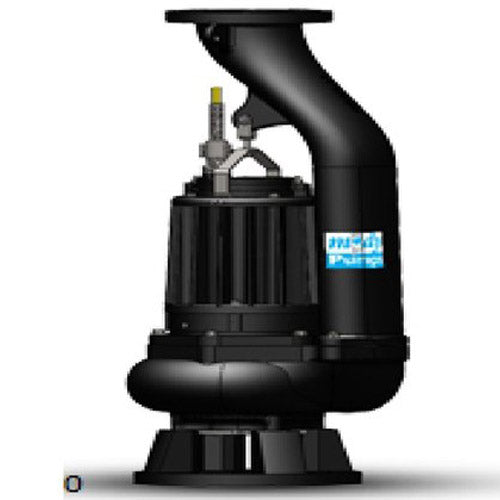

Mody Pumps Model # MH480 Portable Electric Submersible Sump Pump (10 HP, 6" Discharge, 1100 GPM Max GPM)

Mody Pumps Model # MH480 Portable Electric Submersible Sump Pump (10 HP, 6" Discharge, 1100 GPM Max GPM)

MH480

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Mody Pumps MH480, MH 480 Series , 10 HP, 6" Discharge, 1100 GPM Max GPM,
Applications
SUBMERSIBLE MANHOLE PUMP FOR MOBILE WET PIT SEWER BYPASS OPERATIONS
Features
POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU.
SURFACE TREATMENT: Primer with Epoxy and subsequently coated with black chloric paint for max. corrosion resistance. pH Range 6 - 11.
COOLING: Integral cast cooling fins on motor casing with large surface area ensure efficient heat dissipation and low temperature rise. Shrink fitted stators and short shaft overhang facilitate cooling.
MOTOR: 4-pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. Stator insulation class 'H'

Specifications

Brand
Mody Pumps
Catalog Number
MH480
Type
Electric Submersible Sewage Pump
Series
MH 480 Series
HP
10
Discharge
6"
Max GPM
1100 GPM
Max Shut-Off Head
60 Ft.
Solid Handling
3"
Impeller Type
Channel
Power Sypply
230/380/460/575V
Max Starts / Stop Per Hr
15
Motor VFD Rated
4 Poles
Max Amps 460/400V
14/16
RPM
1750
Solid Handling
3"
Max Temperature
104 Degrees F.
Max Submergence
33'
Casing
Cast Alloy
Notes
See Support Documents

Support Documents (pdf)
