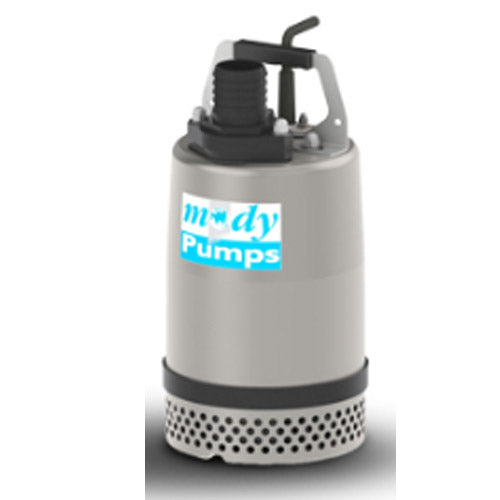

Mody Pumps Model M2 Portable Electric Submersible Sump Pump (2 HP, 2" NPT Discharge, 115 Volts)
Mody Pumps Model M2 Portable Electric Submersible Sump Pump (2 HP, 2" NPT Discharge, 115 Volts)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:M2
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Mody Pumps M2, Mody Pumps M Series , 2 HP, 2" NPT Discharge, 115 Volts,
| Applications | |
| PORTABLE ELECTRIC SUBMERSIBLE SUMP PUMPS FOR GENERAL DEWATERING APPLICATIONS | |
| Features | |
| Stainless Steel Outer Casing, Stator Casing, Strainer, Shaft, and Hardware for maximum corrosion resistance. | |
| Cast Iron Semi Open Abrasive Resistant Impeller. Double Silicon Carbide/Silicon Carbide and Carbon/Ceramic Mechanical seals. | |
| External Oil Seal for added protection against abrasives. | |
| Cast Iron Suction Diffuser | |
| Automatic ON/OFF/ON Thermal Overloads in Motor | |
| CLASS F Motor Insulation | |
| Hi-Torque Single Phase Split Capacitor Motor design | |
| CSA Approved | |
| Built-in Float option available | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
M2 |
Type |
Submersible Sump Pump |
Series |
Mody Pumps M Series |
HP |
2 |
Discharge |
2" NPT |
RPM |
3400 |
Rated Current |
20 Amps |
Volts |
115 |
Phase |
1 |
Solids Passage |
1/4" |
Height |
17.25" |
Weight (approx.) |
24 lbs |
Casing |
Stainless Steel |
Power Cable |
33 ft. |
Submergence |
Min 2.8" / Max 65' |
Hz |
60 |
Max Temp |
104 degrees F |
Max Stop / Start Per Hr |
15 |
MAX GPM |
120 GPM |
MAX Total Head (approx.) |
65 Ft. |
Notes |
See Support Documents |
Support Documents (pdf) |
