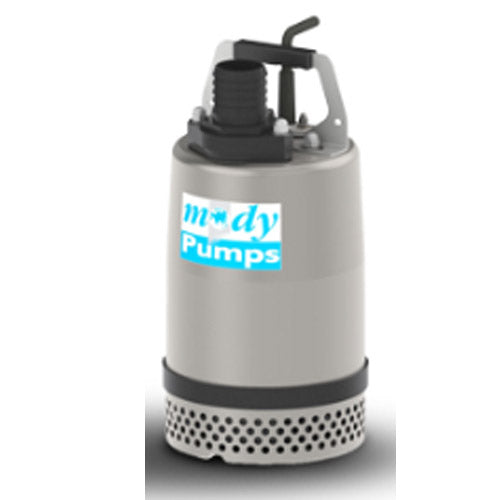

Mody Pumps Model M1 Portable Electric Submersible Sump Pump (1 HP, 2" NPT Discharge, 115 Volts)

Mody Pumps Model M1 Portable Electric Submersible Sump Pump (1 HP, 2" NPT Discharge, 115 Volts)

M1

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Mody Pumps M1, Mody Pumps M Series , 1 HP, 2" NPT Discharge, 115 Volts,
Applications
PORTABLE ELECTRIC SUBMERSIBLE SUMP PUMPS FOR GENERAL DEWATERING APPLICATIONS
Features
Stainless Steel Outer Casing, Stator Casing, Strainer, Shaft, and Hardware for maximum corrosion resistance.
Cast Iron Semi Open Abrasive Resistant Impeller. Double Silicon Carbide/Silicon Carbide and Carbon/Ceramic Mechanical seals.
External Oil Seal for added protection against abrasives.
Cast Iron Suction Diffuser
Automatic ON/OFF/ON Thermal Overloads in Motor
CLASS F Motor Insulation
Hi-Torque Single Phase Split Capacitor Motor design
CSA Approved
Built-in Float option available

Specifications

Brand
Mody Pumps
Catalog Number
M1
Type
Submersible Sump Pump
Series
Mody Pumps M Series
HP
1
Discharge
2" NPT
RPM
3400
Rated Current
10 Amps
Volts
115
Phase
1
Solids Passage
1/4"
Height
14.17"
Weight (approx.)
14 lbs
Casing
Stainless Steel
Power Cable
20 ft.
Submergence
Min 2" / Max 65'
Hz
60
Max Temp
104 degrees F
Max Stop / Start Per Hr
15
MAX GPM
82 GPM
MAX Total Head (approx.)
50 Ft.
Notes
See Support Documents
