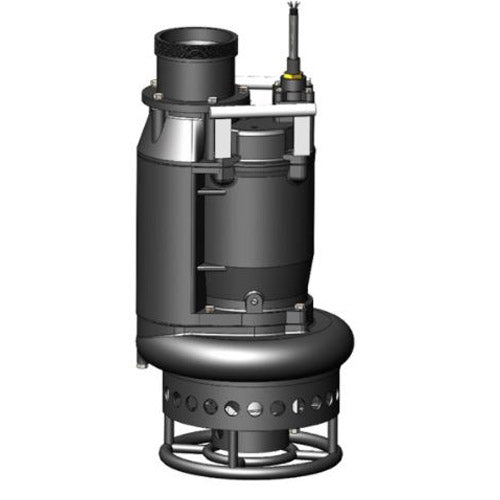

MLS8-30 Mody Pumps Electric Submersible Slurry and Sand Pump (30 HP, 8" Discharge, 1580 Max GPM)
MLS8-30 Mody Pumps Electric Submersible Slurry and Sand Pump (30 HP, 8" Discharge, 1580 Max GPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:MLS8-30
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Mody Pumps MLS8-30, MLS SERIES , 30 HP, 8" Discharge, 1580 Max GPM,
| Applications | |
| ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP - 28% HI-CHROME DESIGNED FOR PORTABLE AND ABRASIVE APPLICATIONS | |
| Features | |
| POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50 ft. length standard. | |
| SHAFT SEALS: Double Mechanical Seals, outer and inner are Silicon Carbide, both rotating and stationary faces. | |
| HYDRAULICS: Multi Vane, Semi-Open Impellers to effectively handle abrasive media | |
| COOLING: Top discharge ensures that the pump is cooled by the pumped liquid allowing the pump to operate even if not completely submerged. | |
| SURFACE TREATMENT: Primer with Epoxy paint | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
MLS8-30 |
Type |
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP |
Series |
MLS SERIES |
HP |
30 |
Discharge |
8" |
Max GPM |
1580 |
Max Shut-Off Head |
105' |
Solid Handling |
1.2" |
Impeller Type |
Multi Vane |
Power Sypply |
3 Phase / 208/230/460/575V |
Insulation |
F |
Max Starts / Stop Per Hr |
15 |
Wet Ends |
28% Hi Chrome |
Motor |
4 Poles |
Weight (lbs) |
955 |
Impeller Type |
Semi-Open |
Max Temp |
104 Degrees F. |
Max Submergence |
65 Feet |
Height |
49" |
Notes |
See Support Documents |
Support Documents (pdf) |
