Mody Pumps

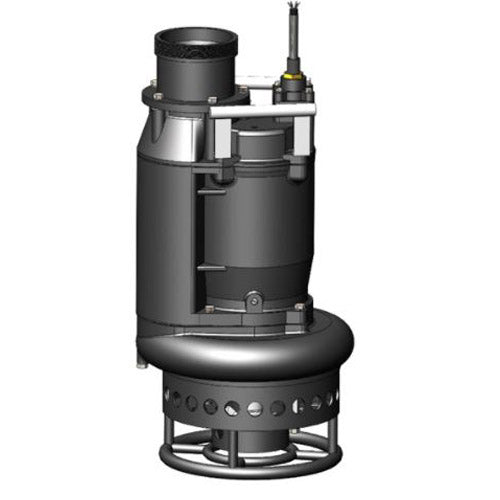

MLS6-12 Mody Pumps Electric Submersible Slurry and Sand Pump (12 HP, 6" Discharge, 850 Max GPM)

MLS6-12 Mody Pumps Electric Submersible Slurry and Sand Pump (12 HP, 6" Discharge, 850 Max GPM)

MLS6-12

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Mody Pumps MLS6-12, MLS SERIES , 12 HP, 6" Discharge, 850 Max GPM,
Applications
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP - 28% HI-CHROME DESIGNED FOR PORTABLE AND ABRASIVE APPLICATIONS
Features
POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50 ft. length standard.
SHAFT SEALS: Double Mechanical Seals, outer and inner are Silicon Carbide, both rotating and stationary faces.
HYDRAULICS: Multi Vane, Semi-Open Impellers to effectively handle abrasive media
COOLING: Top discharge ensures that the pump is cooled by the pumped liquid allowing the pump to operate even if not completely submerged.
SURFACE TREATMENT: Primer with Epoxy paint

Specifications

Brand
Mody Pumps
Catalog Number
MLS6-12
Type
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP
Series
MLS SERIES
HP
12
Discharge
6"
Max GPM
850
Max Shut-Off Head
72'
Solid Handling
1.2"
Impeller Type
Multi Vane
Power Sypply
3 Phase / 208/230/460/575V
Insulation
F
Max Starts / Stop Per Hr
15
Wet Ends
28% Hi Chrome
Motor
4 Poles
Weight (lbs)
403
Impeller Type
Semi-Open
Max Temp
104 Degrees F.
Max Submergence
65 Feet
Height
35"
Notes
See Support Documents
