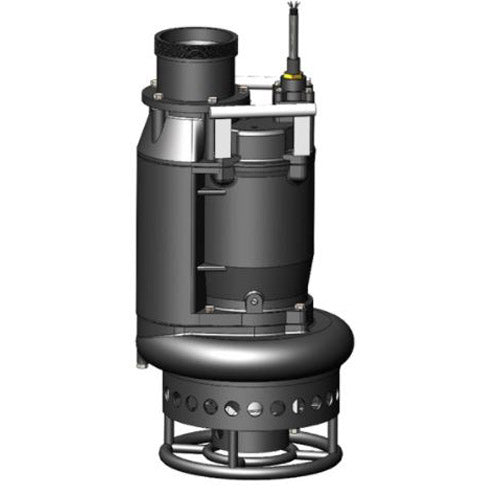

MLS4-8 Mody Pumps Electric Submersible Slurry and Sand Pump (8 HP, 4" Discharge, 650 Max GPM)
MLS4-8 Mody Pumps Electric Submersible Slurry and Sand Pump (8 HP, 4" Discharge, 650 Max GPM)
SKU:MLS4-8
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Mody Pumps MLS4-8, MLS SERIES , 8 HP, 4" Discharge, 650 Max GPM,
| Applications | |
| ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP - 28% HI-CHROME DESIGNED FOR PORTABLE AND ABRASIVE APPLICATIONS | |
| Features | |
| POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50 ft. length standard. | |
| SHAFT SEALS: Double Mechanical Seals, outer and inner are Silicon Carbide, both rotating and stationary faces. | |
| HYDRAULICS: Multi Vane, Semi-Open Impellers to effectively handle abrasive media | |
| COOLING: Top discharge ensures that the pump is cooled by the pumped liquid allowing the pump to operate even if not completely submerged. | |
| SURFACE TREATMENT: Primer with Epoxy paint | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
MLS4-8 |
Type |
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP |
Series |
MLS SERIES |
HP |
8 |
Discharge |
4" |
Max GPM |
650 |
Max Shut-Off Head |
55' |
Solid Handling |
1.2" |
Impeller Type |
Multi Vane |
Power Sypply |
3 Phase / 208/230/460/575V |
Insulation |
F |
Max Starts / Stop Per Hr |
15 |
Wet Ends |
28% Hi Chrome |
Motor |
4 Poles |
Weight (lbs) |
332 |
Impeller Type |
Semi-Open |
Max Temp |
104 Degrees F. |
Max Submergence |
65 Feet |
Height |
33.3" |
Notes |
See Support Documents |
