Mody Pumps

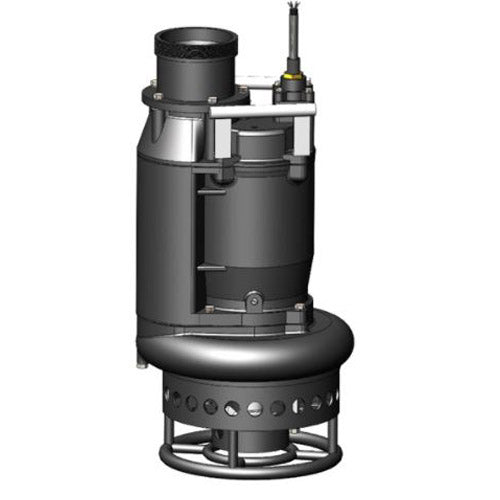

ML8-20 Mody Pumps Electric Submersible Slurry and Sand Pump (20 HP, 8" Discharge, 1630 Max GPM)

ML8-20 Mody Pumps Electric Submersible Slurry and Sand Pump (20 HP, 8" Discharge, 1630 Max GPM)

ML8-20

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Mody Pumps ML8-20, MLS SERIES , 20 HP, 8" Discharge, 1630 Max GPM,
Applications
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP - 28% HI-CHROME DESIGNED FOR PORTABLE AND ABRASIVE APPLICATIONS
Features
POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50 ft. length standard.
SHAFT SEALS: Double Mechanical Seals, outer and inner are Silicon Carbide, both rotating and stationary faces.
HYDRAULICS: Multi Vane, Semi-Open Impellers to effectively handle abrasive media
COOLING: Top discharge ensures that the pump is cooled by the pumped liquid allowing the pump to operate even if not completely submerged.
SURFACE TREATMENT: Primer with Epoxy paint

Specifications

Brand
Mody Pumps
Catalog Number
ML8-20
Type
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP
Series
MLS SERIES
HP
20
Discharge
8"
Max GPM
1630
Max Shut-Off Head
72'
Solid Handling
1.2"
Impeller Type
Multi Vane
Power Sypply
3 Phase / 208/230/460/575V
Insulation
F
Max Starts / Stop Per Hr
15
Wet Ends
28% Hi Chrome
Motor
4 Poles
Weight (lbs)
612
Impeller Type
Semi-Open
Max Temp
104 Degrees F.
Max Submergence
65 Feet
Height
44.2"
Notes
See Support Documents

Support Documents (pdf)
