Myers Pumps

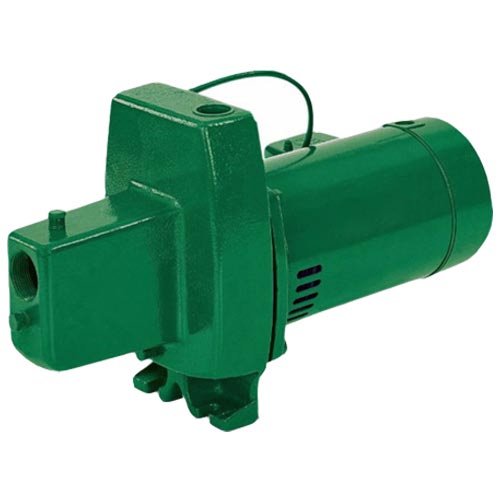

MFND Myers Pumps Cast Iron Self-Priming Shallow Well Jet Pumps (3/4 HP, 1-1/4 Suction, 1" Discharge)

MFND Myers Pumps Cast Iron Self-Priming Shallow Well Jet Pumps (3/4 HP, 1-1/4 Suction, 1" Discharge)

MFND

$616.28 USD
$616.28 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Myers Pumps MFND, Cast Iron Self-Priming Shallow Well Jet Pumps , MFN Series , 3/4 HP, 1-1/4 Suction, 1" Discharge,
Applications
The MFN Series cast iron, self-priming shallow well jet pump provides strong performance with good pressure for wells to 25 deep. Self-priming after the priming chamber has been filled with water. Applications include: Water systems and sprinkling for home, farms, and cottages.
Features
QUALITY CONSTRUCTION: Close-grained cast iron body and base, specially treated for corrosion resistance. Drain port provided for easy winterizing.
BUILT-IN JET: High-strength polycarbonate nozzle and venturi for maximum resistance to corrosion and abrasion. Clean out plug provided for ease of service.
NORYL IMPELLER: Precision-molded for perfect balance; ultra smooth for highest performance and efficiency.
PRECISION-MOLDED DIFFUSER: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
MECHANICAL SHAFT SEAL: Precision lapped and highly polished carbon-ceramic,stainless steel construction. Internal design guarantees continuous water lubrication.
MOTOR WINDINGS: Superior insulation materials protect against excessive moisture and contaminants assure prolonged motor life.
BALANCED ROTOR: Die cast under high pressures for uniform performance and greater efficiency, dynamically balanced.
HEAVY-DUTY BALL BEARINGS: Sealed, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
PUMP AND MOTOR SHAFT: Stainless steel for maximum corrosion resistance; one piece threaded shaft for positive impeller drive and alignment.
DUST PROOF COVER: All electrical components are protected from dirt, dust and insects by a dust proof canopy; ventilating air cannot contaminate vital switching components.
PRESSURE SWITCH: Adjustable cut-in and fixed differential (20 psi).

Specifications

Brand
Myers Pumps
Catalog Number
MFND
Type
Cast Iron Self-Priming Shallow Well Jet Pumps
Series
MFN Series
HP
3/4
Switch Settings
30-50
Suction
1-1/4
Discharge
1"
Motor Voltage
115/230
Approximate Weight (lbs)
47
Construction
Cast Iron
Impeller
Noryl
Max Liquid Temp.
140F
Nozzle
High-strength polycarbonate
Venturi
Polycarbonate
Diffuser
Reinforced polypropylene
Shaft
One piece threaded stainless steel
Notes
See Support Documents

Support Documents (pdf)
