Myers Pumps

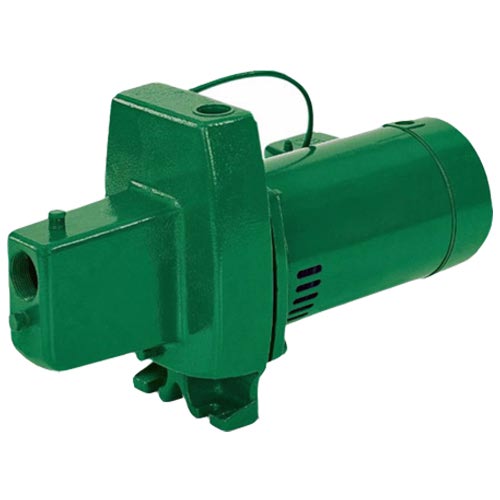

MFNC Myers Pumps Cast Iron Self-Priming Shallow Well Jet Pumps (1/2 HP, 1-1/4" Suction, 1" Discharge)

MFNC Myers Pumps Cast Iron Self-Priming Shallow Well Jet Pumps (1/2 HP, 1-1/4" Suction, 1" Discharge)

MFNC

$641.42 USD
$1,251.00 USD $641.42 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

 Más opciones de pago
Myers Pumps MFNC, Cast Iron Self-Priming Shallow Well Jet Pumps , MFN Series , 1/2 HP, 1-1/4" Suction, 1" Discharge,
Applications
The MFN Series cast iron, self-priming shallow well jet pump provides strong performance with good pressure for wells to 25 deep. Self-priming after the priming chamber has been filled with water. Applications include: Water systems and sprinkling for home, farms, and cottages.
Features
QUALITY CONSTRUCTION: Close-grained cast iron body and base, specially treated for corrosion resistance. Drain port provided for easy winterizing.
BUILT-IN JET: High-strength polycarbonate nozzle and venturi for maximum resistance to corrosion and abrasion. Clean out plug provided for ease of service.
NORYL IMPELLER: Precision-molded for perfect balance; ultra smooth for highest performance and efficiency.
PRECISION-MOLDED DIFFUSER: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
MECHANICAL SHAFT SEAL: Precision lapped and highly polished carbon-ceramic,stainless steel construction. Internal design guarantees continuous water lubrication.
MOTOR WINDINGS: Superior insulation materials protect against excessive moisture and contaminants assure prolonged motor life.
BALANCED ROTOR: Die cast under high pressures for uniform performance and greater efficiency, dynamically balanced.
HEAVY-DUTY BALL BEARINGS: Sealed, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
PUMP AND MOTOR SHAFT: Stainless steel for maximum corrosion resistance; one piece threaded shaft for positive impeller drive and alignment.
DUST PROOF COVER: All electrical components are protected from dirt, dust and insects by a dust proof canopy; ventilating air cannot contaminate vital switching components.
PRESSURE SWITCH: Adjustable cut-in and fixed differential (20 psi).

Specifications

Brand
Myers Pumps
Catalog Number
MFNC
Type
Cast Iron Self-Priming Shallow Well Jet Pumps
Series
MFN Series
HP
1/2
Switch Settings
30-50
Suction
1-1/4"
Discharge
1"
Motor Voltage
115/230
Approximate Weight (lbs)
46
Construction
Cast Iron
Impeller
Noryl
Max Liquid Temp.
140 F
Nozzle
High-strength polycarbonate
Venturi
Polycarbonate
Diffuser
Reinforced polypropylene
Shaft
One piece threaded stainless steel
Notes
See Support Documents
