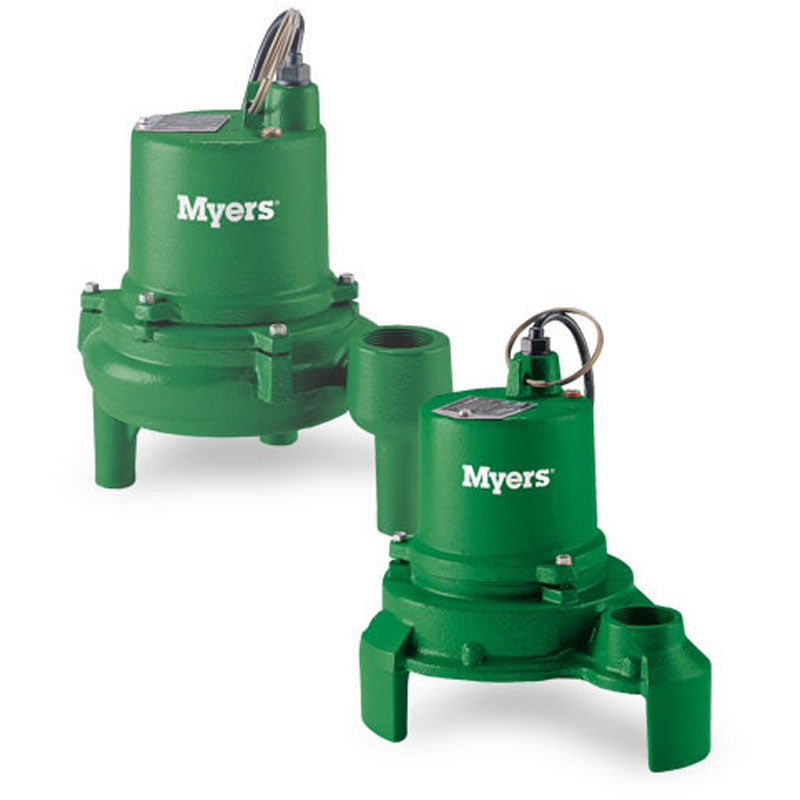

ME3H-21P Pentair Myers Effluent Pump (1/3 HP, 1 Phase, 230 Voltage, 1-1/2" Discharge, Piggy Back Tethered Switch)

Myers ME3H-21P, High Head and High Flow Submersible Effluent Pump Type, ME3 Series, 1/3 HP, 1 Phase, 230 Voltage, 1-1/2" Discharge, Piggy Back Tethered Switch,

Applications
Effluent removal, sump drainage, features water transfer, flood control
Features
Two Powerful Pumps High head (ME3H), High flow (ME3F)
Maximum Heat-handling Durable, oil-filled motor for continuous bearing lubrication and maximum heat dissipation
Powerful Starts High-torque, no starting switches or relays to wear out
Thermal Protection Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature
Longer-lasting Motor Lower ball bearing eliminates sleeve bearing wear and reduces motor wear
Manual Operation Tethered automatic models can be operated manually by unplugging piggyback switch and plugging pump directly into outlet

Specifications
Brand	Myers
Catalog Number	ME3H-21P
Type	High Head and High Flow Submersible Effluent Pump
Series	ME3
HP	1/3
Phase	1
Voltage	230
Cord Length	20'
Discharge	1-1/2"
Solids Handling	3/4"
Switch	Piggy Back Tethered
Liquid Handling	Domestic effluent and drain water
Housing	Heavy cast iron
