Mody Pumps

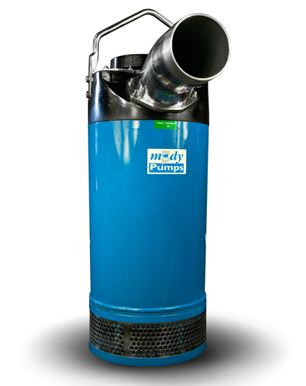

M536T Mody Pump, Dewatering Pump (7.5 HP, 240/480 V, 3" Discharge, Three Phase, 22/11 Amps)

Name: M536T Mody Pump, Dewatering Pump (7.5 HP, 240/480 V, 3" Discharge, Three Phase, 22/11 Amps)
Brand: Mody Pumps
SKU: M536T
Availability: InStock

SKU:M536T

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Request a Quote

Name *

Email *

Message *

Country *

Zip Code *

Mody M536T, 7.5 HP, 240/480 V, 3" Discharge, Three Phase, 22/11 Amps

Applications
PORTABLE ELECTRIC SUBMERSIBLE PUMP FOR CORROSIVE & ABRASIVE APPLICATIONS

Features
2-pole induction continuous rated motor with squirrel cage rotor
Max. temperature of the pump liquid : 104F/40C
Max. start/stop per hour : 15
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard.
Epoxy coated Aluminum Outer Casing

Specifications
Brand	Mody
Catalog Number	M536T
Type	Submersible Dewatering Pump
Series	Industrial Series
Description	Heavy Duty Dewatering
HP	7.5
Voltage	240/480
Discharge	3"
Phase	Three
Amperage	22/11
Height	32.5"
Width	13"
Hole Size	0.25"
Weight	148 lbs.
Warranty	1 Year
Notes	See Support Documents

Support Documents (pdf)

Mody M536T Pump Curve
